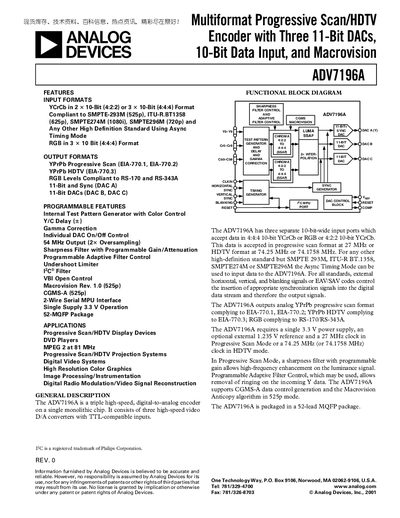

Analog Devices ADV7196A Datasheet
The ADV7196A is a triple high‑speed digital‑to‑analog video encoder on a single monolithic chip. It supports multiple input formats (YCrCb 4:2:2, 4:4:4 and RGB) and outputs YPrPb progressive‑scan, HDTV, and RGB signals, complying with standards such as SMPTE‑293M, ITU‑R BT.1358, EIA‑770 and RS‑170/RS‑343A.
The datasheet provides full electrical specifications, timing diagrams, pin configurations, absolute maximum ratings, and ordering information for the 52‑lead MQFP package, along with programmable features like sharpness filter, adaptive filter control, and macrovision.
Analog Devices ADV7196A specifications
| Resolution (Each DAC) | 11 Bits |
|---|---|
| Integral Nonlinearity | 1.5 LSB |
| Differential Nonlinearity | 0.9‑2.0 LSB |
| Output High Voltage (Vor) | 0.4 V |
| Output Low Voltage (Von) | 2.4 V |
| Full‑Scale Output Current – DAC A | 3.92‑4.56 mA |
| Full‑Scale Output Current – DAC B/C | 2.54‑3.11 mA |
| Power Supply | Single 3.3 V |
| Package | 52‑lead MQFP |
All Analog Devices ADV7196A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the ADV7196A require?
The device operates from a single 3.3 V power supply, with an optional external 1.235 V reference.
Which video output formats are supported by the ADV7196A?
It outputs analog YPrPb progressive‑scan (EIA‑770.1, .2), YPrPb HDTV (EIA‑770.3), and RGB levels compliant to RS‑170 and RS‑343A.
What supply voltage does the ADV7196A require?
The device operates from a single 3.3 V power supply.
Which video output formats are supported by the ADV7196A?
It outputs YPrPb progressive‑scan (EIA‑770.1/2), YPrPb HDTV (EIA‑770.3), and RGB compliant with RS‑170/RS‑343A.
