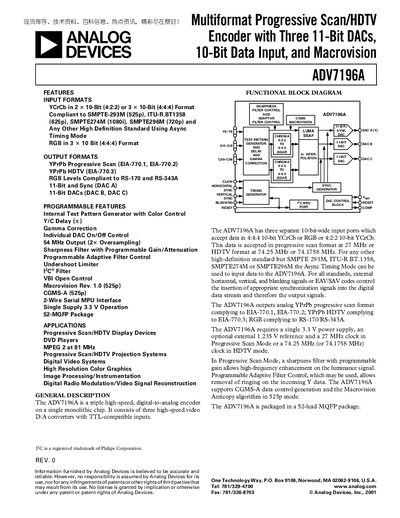

The ADV7196A is a high‑speed, three‑channel digital‑to‑analog video encoder on a single monolithic chip. It accepts 10‑bit YCrCb or RGB data in progressive‑scan formats and provides analog YPrPb or RGB outputs for HDTV and other high‑definition standards.
Key features include programmable sharpness and adaptive filters, internal test‑pattern generator, CGMS‑A and Macrovision support, and a single 3.3 V supply. The device is offered in a 52‑lead MQFP package and is targeted at DVD players, projection systems, digital video equipment, and image‑processing applications.
| Resolution (Each DAC) | 11 Bits |
|---|---|
| Integral Nonlinearity | 1.5 LSB |
| Output High Voltage (Voh) | 0.4 V |
| Output Low Voltage (Vol) | 2.4 V |
| Full‑Scale Output Current (DAC A) | 3.92‑4.56 mA |
| Supply Voltage | 3.3 V single |
| Package | 52‑lead MQFP |
The device operates from a single 3.3 V power supply.
It outputs YPrPb progressive‑scan (EIA‑770.1/2), YPrPb HDTV (EIA‑770.3), and RGB compliant with RS‑170/RS‑343A.
The device is packaged in a 52‑lead plastic MQFP (quad flat‑pack).
