Start here

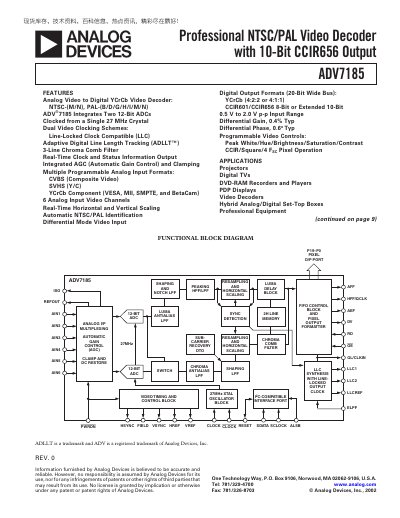

Analog Devices ADV7185 Video Decoder Datasheet
The ADV7185 integrates two 12‑bit ADCs clocked from a single 27 MHz crystal and supports dual video clocking schemes (Line‑Locked Clock and Adaptive Digital Line Length Tracking). It provides a 3‑line chroma comb filter, real‑time clock and status outputs, automatic gain control, and clamping for six analog video input channels, handling CVBS, SVHS, and YCrCb component signals.
The device offers extensive digital output options, including 20‑bit YCrCb formats, and includes programmable video controls for brightness, contrast, hue, and saturation. Electrical specifications cover a 5 V analog supply, 3.3 V digital I/O, and a maximum operating temperature of 70 °C, making it suitable for professional video equipment, broadcast, and surveillance applications.
Analog Devices ADV7185 specifications
| ADC Resolution | 12 bits |
|---|---|
| Digital Supply Voltage (VDD) | 3.2 V – 3.5 V |
| Analog Supply Voltage (VAA) | 4.75 V – 5.25 V |
| Clock Frequency | 27 MHz |
| Analog Input Channels | 6 |
All Analog Devices ADV7185 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the digital supply voltage range for the ADV7185?
The digital supply voltage (VDD) operates from 3.2 V to 3.5 V.
How many analog video input channels does the ADV7185 provide?
The device provides six analog input video channels.
What is the analog video input voltage range?
The analog video inputs accept a 0.5 V to 2.0 V peak‑to‑peak signal.
From: ANALOG DEVICES ADV7185 Professional NTSC/PAL Video Decoder with 10-Bit CCIR656 Outp handbook
What is the typical signal‑to‑noise ratio of the ADV7185?
The device achieves an SNR of 61 – 63 dB in ramp tests.
From: ANALOG DEVICES ADV7185 Professional NTSC/PAL Video Decoder with 10-Bit CCIR656 Outp handbook
