Start here

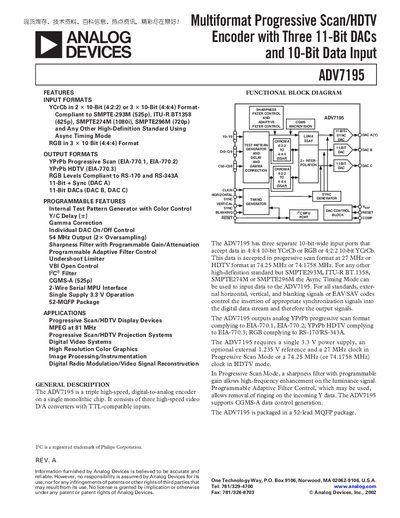

Analog Devices ADV7195 Datasheet
The ADV7195 is a triple high‑speed digital‑to‑analog video encoder on a single monolithic chip. It integrates three 10‑bit video D/A converters with TTL‑compatible inputs and supports YCrCb 4:4:4, RGB 4:4:4, and YCrCb 4:2:2 input formats. The device operates in progressive‑scan mode at 27 MHz or HDTV mode at 74.25 MHz, with an asynchronous timing mode for other high‑definition standards.
The datasheet details electrical specifications, timing parameters, pin assignments, and absolute maximum ratings. It also includes ordering information, package dimensions (52‑lead MQFP), and recommended ESD handling procedures.
Analog Devices ADV7195 specifications
| Resolution (Each DAC) | 11 Bits |
|---|---|
| Integral Nonlinearity | 1.5 LSB |
| Differential Nonlinearity | 0.9–2.0 LSB |
| Output Low Voltage (V_OL) | 0.4 V |
| Output High Voltage (V_OH) | 2.4 V |
| Full‑Scale Output Current (DAC A) | 3.92–4.56 mA |
| Power Supply Rejection Ratio | 0.01 %/ % |
| Luma Bandwidth | 13.5 MHz |
| Chroma Bandwidth | 6.75 MHz |
| SCLOCK Frequency (MPU Port) | 0–400 kHz |
Source: Analog Devices ADV7195 Datasheet
All Analog Devices ADV7195 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the ADV7195 require?
The ADV7195 requires a single 3.3 V power supply and can use an optional external 1.235 V reference.
What input formats are supported by the ADV7195?
It accepts 10‑bit YCrCb 4:4:4, RGB 4:4:4, and YCrCb 4:2:2 formats, with progressive‑scan at 27 MHz or HDTV at 74.25 MHz, plus an async timing mode for other standards.
What supply voltage does the ADV7195 require?
The ADV7195 requires a single 3.3 V power supply and optionally an external 1.235 V reference.
What input formats are supported by the ADV7195?
It accepts YCrCb 4:4:4 10‑bit, RGB 4:4:4 10‑bit, and YCrCb 4:2:2 10‑bit input formats.
