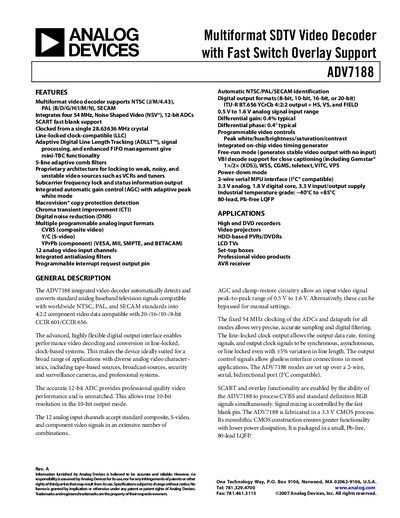

Analog Devices ADV7188 Datasheet Rev A
The ADV7188 video decoder from Analog Devices automatically detects and converts NTSC, PAL and SECAM signals from composite, S‑video and component sources into digital video formats. It features four 12‑bit NSV ADCs, a 28.63636 MHz clock, and a 5‑line adaptive comb filter for high‑quality output.
Designed for applications such as DVD recorders, set‑top boxes, video projectors and security cameras, the device includes programmable video controls, Macrovision copy‑protection detection, and a 2‑wire I²C‑compatible serial interface for configuration.
Analog Devices ADV7188 specifications
| Input voltage range | 0.5 V to 1.6 V |
|---|---|
| Operating temperature | –40 °C to +85 °C |
| Package | 80‑lead LQFP (Pb‑free) |
| Clock frequency | 28.63636 MHz |
| ADC resolution | 12‑bit |
| Supported video standards | NTSC, PAL, SECAM (composite, S‑video, component) |
