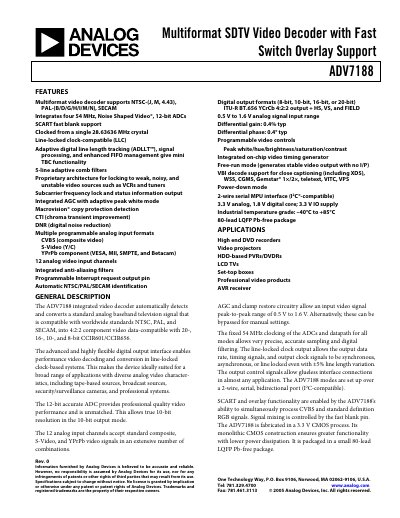

ADV7188 is a multi-format SDTV video decoder that supports fast switch overlay from Analog Devices
The ADV7188 is a single‑chip video decoder that automatically detects and converts NTSC, PAL, and SECAM standards from composite, S‑Video, and component inputs into a digital ITU‑R BT.656 4:2:2 output. It features four 12‑bit noise‑shaped video ADCs, a 5‑line adaptive comb filter, and adaptive digital line‑length tracking for reliable operation with VCRs and other noisy sources.
The device operates from a 28.63636 MHz crystal, offers 12 analog video input channels, and provides a flexible 2‑wire I²C‑compatible serial interface for configuration. It is supplied in an 80‑lead LQFP package and is rated for industrial temperature ranges from –40 °C to +85 °C.
| Analog input channels | 12 |
|---|---|
| ADC resolution | 12‑bit |
| Operating temperature range | -40 °C to +85 °C |
| Digital output format | ITU‑R BT.656 4:2:2 |
| Crystal frequency | 28.63636 MHz |
| Package | 80‑lead LQFP (Pb‑free) |
It supports NTSC (J, M, 4.43), PAL (B/D/G/H/I/M/N), and SECAM standards.
The device provides twelve analog video input channels.
The recommended analog input video signal range is 0.5 V to 1.6 V.
A 28.63636 MHz crystal is required.
