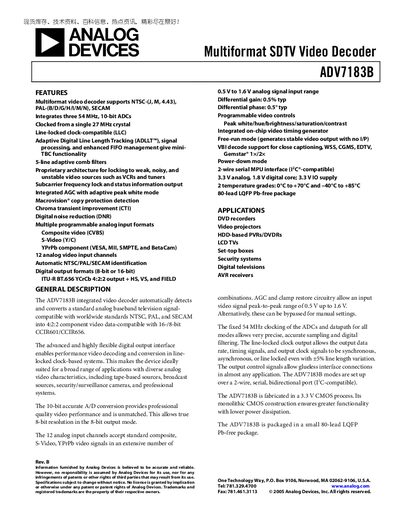

Analog Devices ADV7183B Video Decoder Handbook
The ADV7183B is a single‑chip multiformat video decoder that automatically detects and converts NTSC, PAL, and SECAM analog video signals into digital 4:2:2 component data. It integrates three 10‑bit ADCs, a 12‑channel input mux, and a flexible digital output interface suitable for a wide range of applications such as DVD recorders, set‑top boxes, and security systems.
The document provides a functional block diagram, detailed electrical, video, timing, and analog specifications, pin descriptions, register programming information, PCB layout recommendations, and revision history. It also lists typical applications and ordering information for the 80‑lead LQFP package.
Analog Devices ADV7183B specifications
| Resolution (each ADC) | 10 Bits |
|---|---|
| Input High Voltage (Vin) | 2 V |
| Power‑Down Current | 1.5 mA |
| Operating Temperature Range | -40°C to +85°C |
| Package | 80‑lead LQFP Pb‑free |
All Analog Devices ADV7183B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What video standards does the ADV7183B support?
It supports NTSC (J, M, 4.43), PAL (B/D/G/H/I/M/N) and SECAM standards.
What is the analog video input voltage range?
The recommended analog input range is 0.5 V to 1.6 V.
What video standards does the ADV7183B support?
It supports NTSC (J, M, 4.43), PAL (B/D/G/H/I/M/N), and SECAM standards.
How many analog video input channels are available?
The device provides 12 analog video input channels.
What video standards does the ADV7183B support?
It supports NTSC (J, M, 4.43), PAL (B/D/G/H/I/M/N) and SECAM standards.
What is the analog input voltage range for the ADV7183B?
The recommended analog input video signal range is 0.5 V to 1.6 V.
