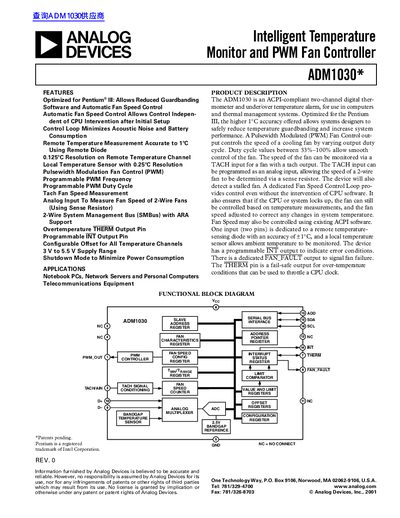

Analog Devices ADM1030 Intelligent Temperature Monitor and PWM Fan Controller Datasheet

This document is the ADM1030 product manual, which introduces the product's functional characteristics, including temperature monitoring, PWM fan control, and automatic fan speed control.

Brand: Analog Devices
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 28
File format: PDF
File size: 275 KB
Published: 08 June, 2012
Updated: 30 September, 2023
Model: ADM1030
MD5 checksum: 2116A422997CCDC2EB8640FB9B1F035B
PDF: Analog Devices ADM1030 Intelligent Temperature Monitor and PWM Fan Controller Datasheet PDF

About this manual

The ADM1030 is an ACPI-compliant two-channel digital thermometer and under/over temperature alarm designed for use in computers and thermal management systems. It is optimized for Pentium III processors, allowing system designers to reduce temperature guardbanding and increase performance. The device features a Pulsewidth Modulated (PWM) Fan Control output that varies the duty cycle between 33% and 100% to control fan speed smoothly.

What's inside

Features
Applications
Product Description
Functional Block Diagram
Specifications
Absolute Maximum Ratings
Thermal Characteristics
Ordering Guide
Pin Function Descriptions
Typical Performance Characteristics

Specifications

Supply Voltage	3.0 V to 5.5 V
Internal Sensor Accuracy	+1°C to +3°C
Remote Sensor Accuracy	+1°C
Package Type	16-Lead QSOP
Operating Temperature Range	0°C to 100°C

Frequently asked questions

What is the operating supply voltage range for the ADM1030?

The device operates with a supply voltage range of 3.0 V to 5.5 V.

What is the accuracy of the internal temperature sensor?

The internal sensor has an accuracy of +1°C to +3°C.

Can the ADM1030 control fan speed automatically?

Yes, it includes a dedicated Fan Speed Control Loop that provides control independent of CPU software intervention.
