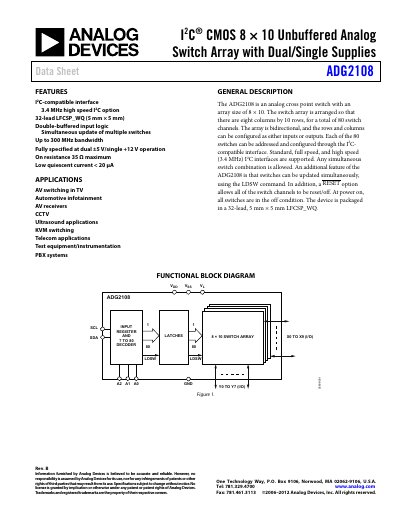

The ADG2108 is an analog cross point switch with an array size of 8 × 10. The switch array is arranged so that there are eight columns by 10 rows, for a total of 80 switch channels. The array is bidirectional, and the rows and columns can be configured.
The ADG2108 is an analog cross-point switch featuring an 8x10 array size, providing a total of 80 switch channels. The device is bidirectional, allowing rows and columns to be configured as inputs or outputs, and supports simultaneous updates of multiple switches via the I2C-compatible interface. It is available in a 32-lead LFCSP_WQ package.
| Array Size | 8 x 10 |
|---|---|
| Total Channels | 80 |
| Bandwidth | Up to 300 MHz |
| Quiescent Current | < 20 µA |
| Package Type | 32-lead LFCSP_WQ |
| Operating Temperature (B Version) | -40°C to +85°C |
| Operating Temperature (Y Version) | -40°C to +125°C |
The device features up to 300 MHz bandwidth.
The switch array has a total of 80 switch channels.
Yes, the device supports dual and single supplies.
