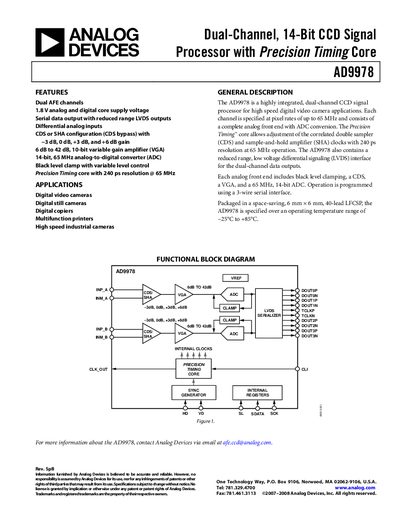

Analog Devices AD9978 Dual-Channel 14-Bit CCD Signal Processor Datasheet
The AD9978 is a highly integrated, dual-channel CCD signal processor designed for high-speed digital video camera applications. Each channel operates at pixel rates up to 65 MHz and includes a complete analog front end with ADC conversion. The device features a Precision Timing core that allows adjustment of the correlated double sampler (CDS) and sample-and-hold amplifier (SHA) clocks with 240 ps resolution at 65 MHz operation.
Read onlineAnalog Devices AD9978 specifications
| Pixel Rate | up to 65 MHz |
|---|---|
| ADC Resolution | 14-bit |
| Gain Range | 6 dB to 42 dB |
| Clock Resolution | 240 ps |
| Operating Temperature | -25°C to +85°C |
| Package | 6 mm × 6 mm, 40-lead LFCSP |
Source: Analog Devices AD9978 Dual-Channel 14-Bit CCD Signal Processor Datasheet
All Analog Devices AD9978 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the applications for the AD9978?
The AD9978 is used in digital video cameras, digital still cameras, digital copiers, multifunction printers, and high speed industrial cameras.
From: Analog Devices AD9978 Dual-Channel 14-Bit CCD Signal Processor Datasheet
How is the AD9978 programmed?
Operation is programmed using a 3-wire serial interface.
From: Analog Devices AD9978 Dual-Channel 14-Bit CCD Signal Processor Datasheet
What is the core supply voltage of the AD9978?
The AD9978 uses a 1.8 V analog and digital core supply voltage.
What type of data output does the AD9978 provide?
It provides reduced‑range LVDS outputs for the dual‑channel data.
What supply voltage does the AD9978 require?
The AD9978 operates from a 1.8 V analog and digital core supply voltage.
What type of data output interface is used by the AD9978?
It provides a reduced‑range LVDS serial data output.
