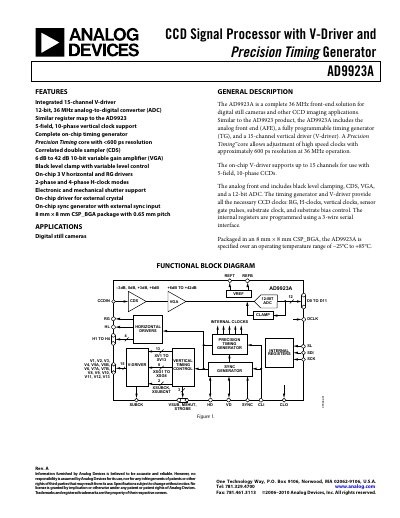

Analog Devices AD9923A Signal Processor Datasheet
Datasheet 84 pages · 1.4 MB · ZH
The AD9923A is a complete 36 MHz front‑end solution for digital still cameras and other CCD imaging applications. It integrates an analog front end, a fully programmable timing generator, and a 15‑channel vertical driver, all packaged in an 8 mm × 8 mm CSP‑BGA.
The document provides detailed specifications, pin descriptions, timing diagrams, and absolute maximum ratings for designers developing CCD camera systems or related imaging equipment. This manual is written in Chinese.
Analog Devices AD9923A specifications
| Operating Temperature Range | -25 °C to +85 °C |
|---|---|
| Analog Supply Voltage (AVDD) | 2.7 V to 3.6 V |
| Maximum Clock Rate | 36 MHz |
| ADC Resolution | 12 bits |
| Package | 8 mm × 8 mm CSP‑BGA |
All Analog Devices AD9923A documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD9923A?
The device operates from –25 °C to +85 °C.
What is the maximum clock frequency supported?
The maximum clock rate is 36 MHz.
What is the maximum operating clock frequency of the AD9923A?
The device supports a maximum clock rate of 36 MHz.
What type of package does the AD9923A use?
It is supplied in an 8 mm × 8 mm CSP_BGA package with 0.65 mm pitch.
