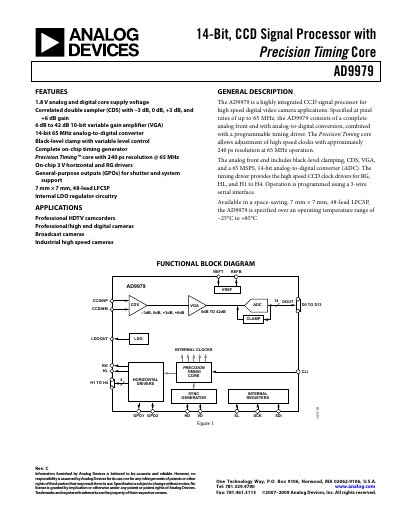

Analog Devices AD9979 CCD Signal Processor Product Handbook
The AD9979 is a highly integrated CCD signal processor designed for high‑speed digital video camera applications. It combines a complete analog front‑end, a 14‑bit 65 MHz ADC, programmable timing drivers, and on‑chip precision timing with ~240 ps resolution.
The device is offered in a 7 mm × 7 mm 48‑lead LFCSP package, operates from –25 °C to +85 °C, and supports a 3‑wire serial interface for configuration. Detailed specifications, pin descriptions, timing diagrams, and typical performance curves are provided in the handbook.
Analog Devices AD9979 specifications
| Operating Temperature Range | -25 °C to +85 °C |
|---|---|
| ADC Resolution | 14 bits |
| Maximum Sample Rate | 65 MHz |
| Analog Supply Voltage (AVDD) | 1.6 V – 2.0 V |
| Digital Supply Voltage (DVDD) | 1.6 V – 2.0 V |
| Package Size | 7 mm × 7 mm LFCSP, 48‑lead |
Source: Analog Devices AD9979 CCD Signal Processor Product Handbook
All Analog Devices AD9979 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD9979?
The AD9979 operates from –25 °C to +85 °C.
From: Analog Devices AD9979 CCD Signal Processor Product Handbook
What is the ADC resolution of the AD9979?
The on‑chip ADC provides 14‑bit resolution.
From: Analog Devices AD9979 CCD Signal Processor Product Handbook
What is the ADC resolution and sampling rate of the AD9979?
The AD9979 includes a 14‑bit analog‑to‑digital converter operating at 65 MHz.
What package does the AD9979 use?
It is available in a 7 mm × 7 mm, 48‑lead LFCSP package.
