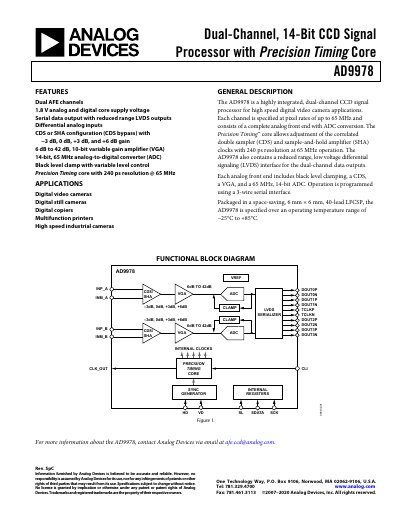

The AD9978 is a highly integrated, dual-channel CCD signal processor for high speed digital video camera applications. The device features two CMOS analog front-ends (AFEs), a 14-bit analog-to-digital converter (ADC), a precision timing core, and LVDS outputs.
The AD9978 is a highly integrated, dual-channel CCD signal processor designed for high-speed digital video camera applications. Each channel operates at pixel rates up to 65 MHz and includes a complete analog front end with ADC conversion. The device features a Precision Timing core that allows adjustment of the correlated double sampler (CDS) and sample-and-hold amplifier (SHA) clocks with 240 ps resolution at 65 MHz operation.
| Pixel Rate | up to 65 MHz |
|---|---|
| ADC Resolution | 14-bit |
| Gain Range | 6 dB to 42 dB |
| Clock Resolution | 240 ps |
| Operating Temperature | -25°C to +85°C |
| Package | 6 mm × 6 mm, 40-lead LFCSP |
The AD9978 is used in digital video cameras, digital still cameras, digital copiers, multifunction printers, and high speed industrial cameras.
Operation is programmed using a 3-wire serial interface.
