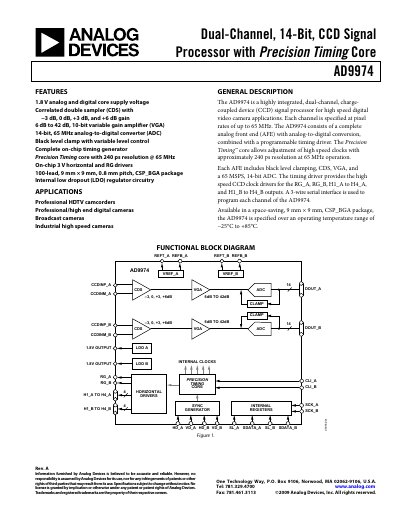

Analog Devices AD9974 Dual-Channel 14-Bit CCD Signal Processor Datasheet
The AD9974 is a highly integrated dual‑channel charge‑coupled device (CCD) signal processor designed for high‑speed digital video camera applications. Each channel supports pixel rates up to 65 MHz and includes a complete analog front end with black‑level clamp, correlated double sampler, variable‑gain amplifier and a 14‑bit, 65 MSPS ADC.
The device features a Precision Timing™ core with ~240 ps resolution, on‑chip 3 V horizontal and reset‑gate drivers, and a 3‑wire serial interface for programming. It is supplied in a 100‑lead 9 mm × 9 mm CSP‑BGA package and operates from –25 °C to +85 °C.
Analog Devices AD9974 specifications
| Operating Temperature Range | -25 °C to +85 °C |
|---|---|
| Supply Voltage AVDD_X (AFE, Timing Core) | 1.6 V – 2.0 V (typ 1.8 V) |
| Maximum Pixel Rate | 65 MHz |
| ADC Resolution | 14 bits |
| VGA Gain Range | 6 dB to 42 dB |
| Package | 100‑lead 9 mm × 9 mm CSP‑BGA |
Source: Analog Devices AD9974 Dual-Channel 14-Bit CCD Signal Processor Datasheet
All Analog Devices AD9974 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range of the AD9974?
The device operates from –25 °C to +85 °C.
From: Analog Devices AD9974 Dual-Channel 14-Bit CCD Signal Processor Datasheet
What is the maximum pixel clock rate supported?
Each channel can handle pixel rates up to 65 MHz.
From: Analog Devices AD9974 Dual-Channel 14-Bit CCD Signal Processor Datasheet
What supply voltage does the AD9974 require?
It uses a 1.8 V analog and digital core supply voltage.
From: Analog Devices AD9974 Dual-Channel CCD Signal Processor Datasheet
What package is the AD9974 available in?
The device is offered in a 100‑lead CSP_BGA package measuring 9 mm × 9 mm with a 0.8 mm pitch.
From: Analog Devices AD9974 Dual-Channel CCD Signal Processor Datasheet
