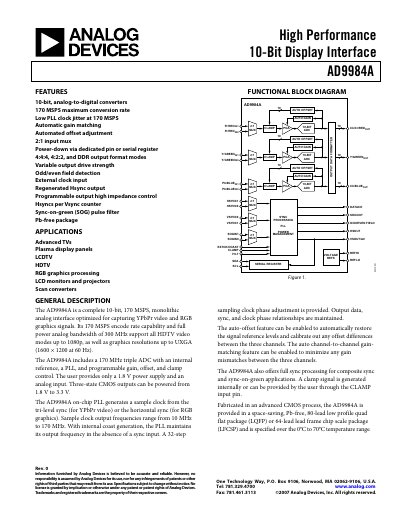

Analog Devices AD9984A High Performance 10-Bit Display Interface Datasheet
The AD9984A is a high-performance device designed to capture YPbPr video and RGB graphics signals. It features a 170 MHz triple ADC with an internal reference, a PLL, and programmable gain, offset, and clamp control. The chip supports all HDTV video modes up to 1080p and graphics resolutions up to UXGA.
Read onlineAnalog Devices AD9984A specifications
| Resolution | 10 bits |
|---|---|
| Operating temperature range | −25 °C to +85 °C |
| Package options | 80‑lead LQFP or 64‑lead LFCSP |
Source: Analog Devices AD9984A High Performance 10‑Bit Display Interface Datasheet
All Analog Devices AD9984A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum conversion rate of the AD9984A?
The device supports a maximum conversion rate of 170 MSPS.
From: Analog Devices AD9984A High Performance 10-Bit Display Interface Datasheet
What is the operating temperature range for this product?
The AD9984A is specified over a temperature range of -25°C to +85°C.
From: Analog Devices AD9984A High Performance 10-Bit Display Interface Datasheet
What is the operating temperature range of the AD9984A?
The device operates from –25 °C up to +85 °C.
From: Analog Devices AD9984A High Performance 10‑Bit Display Interface Datasheet
What is the maximum sampling rate of the AD9984A?
The AD9984A can sample at up to 170 MSPS.
What packages are available for the AD9984A?
It is offered in an 80‑lead LQFP or a 64‑lead LFCSP package.
