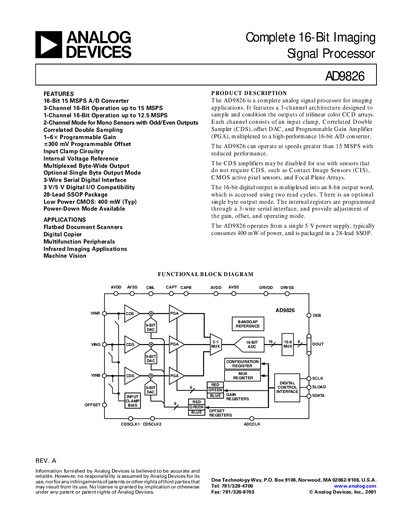

Analog Devices AD9826 Datasheet
The AD9826 is a complete 16‑bit imaging signal processor designed for flat‑bed scanners, digital copiers, and machine‑vision applications. It integrates input clamps, correlated double sampling, programmable gain amplifiers and a high‑performance 16‑bit A/D converter in a 3‑channel architecture.
The device operates from a single 5 V supply, consumes about 400 mW in 3‑channel mode, and is offered in a 28‑lead 5.3 mm SSOP package. Detailed specifications, pin descriptions, timing diagrams and mechanical dimensions are provided in the datasheet.
Analog Devices AD9826 specifications
| Resolution | 16 Bits |
|---|---|
| Maximum conversion rate (3‑Channel Mode with CDS) | 30 MSPS |
| Power consumption (3‑Channel Mode) | 400 mW (Typ) |
| Package | 28‑Lead 5.3 mm SSOP |
| Supply voltage (AVDD) | 5 V (typical 4.75‑5.25 V) |
Source: Analog Devices AD9826 Datasheet
All Analog Devices AD9826 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input signal range?
The programmable input range is 2.0 Vpp or 4.0 Vpp.
What is the maximum operating temperature?
The device is rated for operation from –40 °C to +85 °C.
What is the maximum conversion rate of the AD9826?
The AD9826 can convert up to 30 MSPS in 3‑Channel mode with CDS.
From: Analog Devices AD9826 16‑Bit Imaging Signal Processor Datasheet
What is the ADC resolution of the AD9826?
The ADC provides a 16‑bit resolution.
From: Analog Devices AD9826 16‑Bit Imaging Signal Processor Datasheet
What is the maximum conversion rate in 3‑Channel mode?
The AD9826 can convert at up to 30 MSPS in 3‑Channel mode with CDS.
What is the typical power consumption in 3‑Channel mode?
Typical power dissipation is 400 mW in 3‑Channel mode.
