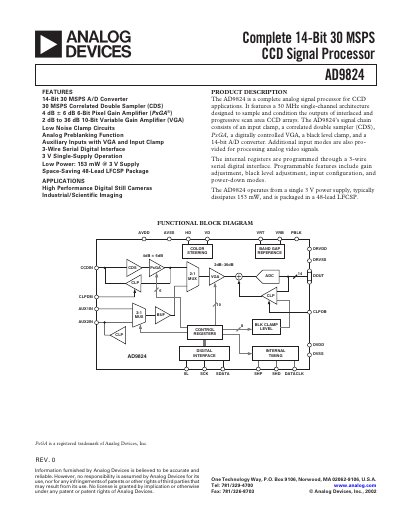

Analog Devices AD9824 CCD Signal Processor Datasheet
The AD9824 is a complete 14‑bit, 30 MSPS CCD signal processor designed for sampling and conditioning outputs of interlaced and progressive‑scan area CCD arrays. It integrates an input clamp, correlated double sampler, pixel gain amplifier (PxGA), digitally controlled VGA, black‑level clamp, and a 14‑bit A/D converter, all powered from a single 3 V supply.
The document provides full electrical specifications, pin descriptions, timing diagrams, absolute maximum ratings, and recommended layout guidelines. It also includes performance curves for power consumption versus sample rate, DNL, output noise, and gain settings for the PxGA and VGA stages.
Analog Devices AD9824 specifications
| Resolution | 14 Bits |
|---|---|
| Maximum Clock Rate | 30 MHz |
| Power Consumption (Normal Operation) | 153 mW |
| Operating Temperature Range | -20 °C to +85 °C |
| Digital Input High Voltage (VIH) | 2.1 V |
| Digital Input Low Voltage (VIL) | 0.6 V |
Source: Analog Devices AD9824 CCD Signal Processor Datasheet
All Analog Devices AD9824 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum clock rate of the AD9824?
The AD9824 operates up to a maximum clock rate of 30 MHz.
How much power does the AD9824 consume in normal operation?
Typical power consumption in normal operation is 153 mW.
What is the operating temperature range of the AD9824?
The device operates from –20 °C to +85 °C.
How much power does the AD9824 consume in normal operation?
Normal operation power consumption is 153 mW.
