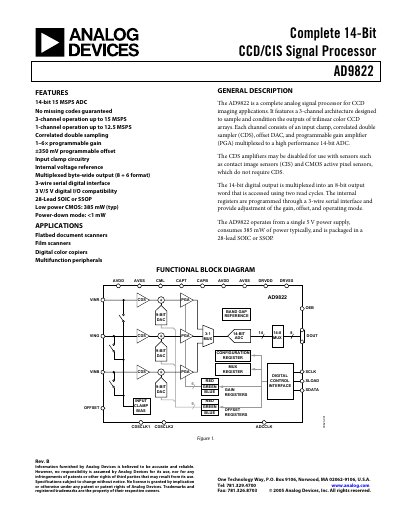

Analog Devices AD9822 14‑Bit CCD/CIS Signal Processor Handbook
The AD9822 is a complete analog signal processor designed for CCD imaging applications. It features a three‑channel architecture that samples and conditions the output of trilinear color CCD arrays, with each channel providing input clamp, correlated double sampling (CDS), offset DAC, and programmable gain amplifier (PGA) before a high‑performance 14‑bit ADC. The device can operate in 3‑channel or 1‑channel modes and supports both CCD and CIS sensors.
The part is supplied in a 28‑lead SOIC or SSOP package, runs from a single 5 V analog supply, and consumes typically 385 mW. Detailed specifications cover analog and digital performance, timing, absolute maximum ratings, thermal characteristics, pin functions, and recommended circuit layouts for optimal operation.
Analog Devices AD9822 specifications
| Maximum conversion rate (3‑channel CDS) | 15 MSPS |
|---|---|
| Maximum conversion rate (1‑channel CDS) | 12.5 MSPS |
| ADC resolution | 14 bits |
| Typical power dissipation (3‑channel mode) | 385 mW |
| Input signal range (differential) | 2.0 Vp‑p |
| Analog supply voltage (AVDD) | 5.0 V typical |
Source: Analog Devices AD9822 14-Bit CCD/CIS Signal Processor Datasheet
All Analog Devices AD9822 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum conversion rate of the AD9822?
The AD9822 can convert at up to 15 MSPS in 3‑channel CDS mode and up to 12.5 MSPS in 1‑channel CDS mode.
From: Analog Devices AD9822 14-Bit CCD/CIS Signal Processor Datasheet
What pins are used for the serial digital interface?
The serial interface uses SCLK (clock), SDATA (data I/O) and SLOAD (load pulse) pins.
From: Analog Devices AD9822 14-Bit CCD/CIS Signal Processor Datasheet
