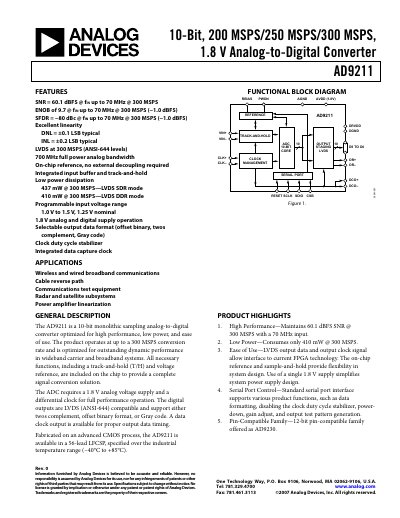

Analog Devices AD9211 Datasheet
The AD9211 is a 10‑bit monolithic sampling ADC optimized for high performance, low power, and ease of use. It integrates a track‑and‑hold circuit and on‑chip reference, requiring only a 1.8 V analog supply and a differential clock for full‑speed operation.
Key features include up to 300 MSPS conversion rate, selectable output formats (offset binary, two's complement, Gray code), LVDS digital outputs, and a serial port for configuration. Typical applications are broadband communications, radar, satellite subsystems, and test equipment.
Analog Devices AD9211 specifications
| Resolution | 10 bits |
|---|---|
| Maximum Conversion Rate | 300 MSPS |
| Analog Supply Voltage (AVDD) | 1.8 V |
| Digital Supply Voltage (DRVDD) | 1.8 V |
| Signal‑to‑Noise Ratio | 60.1 dBFS @ 300 MSPS |
| Effective Number of Bits | 9.7 bits @ 300 MSPS |
| Output Data Formats | Offset binary, two's complement, Gray code |
Source: Analog Devices AD9211 Datasheet
All Analog Devices AD9211 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Analog Devices AD9211 Datasheet 28 p
- ANALOG DEVICES 10-Bit 200 MSPS/250 MSPS/300 MSPS 1.8 V Analog-to-Digital Converter AD9211 handbook(1) 28 p
- Analog Devices AD9211 10‑Bit 170/200/250 MSPS 1.8 V A/D Converter Datasheet 21 p
- ANALOG DEVICES 10-Bit 200 MSPS/250 MSPS/300 MSPS 1.8 V Analog-to-Digital Converter AD9211 handbook(1)(1) 28 p
- Analog Devices AD9211 Datasheet 28 p
Questions answered in these manuals
What is the maximum sampling rate of the AD9211?
The AD9211 can sample at up to 300 MSPS.
What supply voltages does the AD9211 require?
It requires a 1.8 V analog supply (AVDD) and a 1.8 V digital supply (DRVDD).
What is the maximum sampling rate of the AD9211?
The AD9211 can sample at up to 300 MSPS.
What supply voltage does the AD9211 require?
It requires a 1.8 V analog supply (AVDD) and a 1.8 V digital supply (DRVDD).
What is the maximum sampling rate of the AD9211?
The AD9211 can sample up to 250 MSPS (with 170 MSPS and 200 MSPS variants available).
From: Analog Devices AD9211 10‑Bit 170/200/250 MSPS 1.8 V A/D Converter Datasheet
What type of digital output does the AD9211 provide?
The device provides LVDS‑compatible digital outputs, selectable as two’s complement, offset binary, or gray code.
From: Analog Devices AD9211 10‑Bit 170/200/250 MSPS 1.8 V A/D Converter Datasheet
