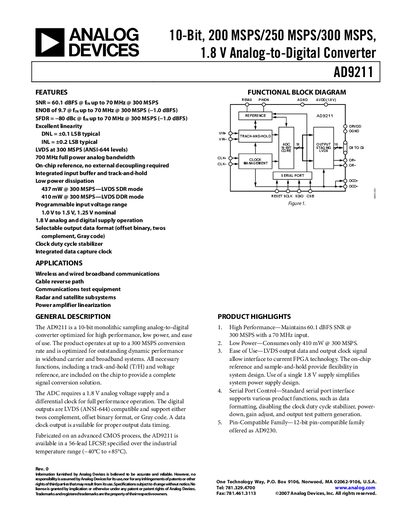

The AD9211 is a 10-bit, 200 MSPS/250 MSPS/300 MSPS, 1.8 V analog-to-digital converter. It features high signal-to-noise ratio (SNR), low distortion (ENOB), and high dynamic range (SFDR). The AD9211 also offers excellent linearity, low power consumption, and programmable input voltage range. It is suitable for wireless and wired broadband communication applications.
The AD9211 is a 10‑bit monolithic sampling analog‑to‑digital converter optimized for high performance, low power, and ease of use. It operates up to 300 MSPS, provides LVDS digital outputs, and includes on‑chip reference and track‑and‑hold circuitry.
Typical applications include wireless and wired broadband communications, radar, satellite subsystems, and power‑amplifier linearization. The device is supplied in a 56‑lead LFCSP package and is specified over an industrial temperature range (‑40 °C to +85 °C).
| Signal‑to‑Noise Ratio (SNR) | 60.1 dBFS @ 300 MSPS |
|---|---|
| Power Dissipation (DDR mode) | 410 mW @ 300 MSPS |
| Programmable Input Voltage Range | 1.0 V to 1.5 V |
| Supply Voltage | 1.8 V (AVDD and DRVDD) |
| Package | 56‑Lead LFCSP (CP‑56‑2) |
It requires a 1.8 V analog and digital supply (AVDD and DRVDD).
The device supports offset binary, two's complement, and Gray code output formats.
