The AD9211 is a 10-bit, 200 MSPS/250 MSPS/300 MSPS, 1.8 V analog-to-digital converter (ADC). It features excellent linearity, low power and flexible configuration, making it ideal for high-performance wireless communications, test and measurement and other applications.

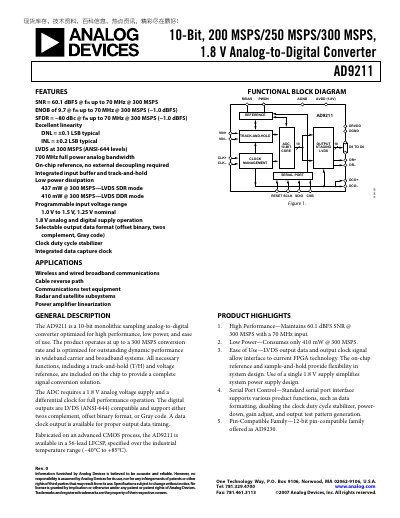

The AD9211 is a 10‑bit monolithic sampling ADC optimized for high performance, low power, and ease of use. It operates from a single 1.8 V supply and provides LVDS digital outputs that can be configured as offset binary, two's complement, or Gray code. The device includes an on‑chip reference and track‑and‑hold, making it a complete signal‑conversion solution for broadband communications, radar, and test equipment.
Key specifications include up to 300 MSPS conversion rate, 60.1 dBFS SNR at full speed, and power dissipation as low as 410 mW in DDR mode. The ADC is offered in a 56‑lead LFCSP package and is rated for industrial temperature range (‑40 °C to +85 °C).
| Power Dissipation (SDR mode) | 437 mW @ 300 MSPS |
|---|---|
| Supply Voltage | AVDD = 1.8 V, DRVDD = 1.8 V |
| Maximum Conversion Rate | 300 MSPS |
| Package | 56‑Lead LFCSP (CP‑56‑2) |
The AD9211 can sample at up to 300 MSPS.
It requires a 1.8 V analog supply (AVDD) and a 1.8 V digital supply (DRVDD).
The ADC can output data in offset binary, two's complement, or Gray code.
In single‑data‑rate (SDR) mode at 300 MSPS the device consumes about 437 mW.
