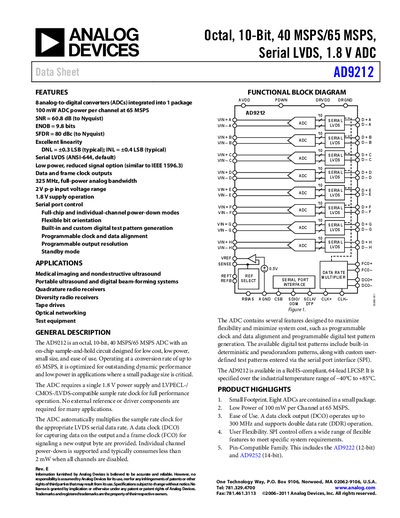

Analog Devices AD9212 Datasheet
The AD9212 is an octal, 10‑bit analog‑to‑digital converter that integrates eight ADC channels in a 64‑lead LFCSP package. It operates from a single 1.8 V supply and offers low power consumption (100 mW per channel at 65 MSPS) with high dynamic performance, including 60.8 dB SNR and 9.8 ENOB.
The document provides full electrical specifications, pin configurations, timing diagrams, and ordering information for both the 40 MSPS and 65 MSPS variants, along with application guidance for medical imaging, ultrasound, and high‑speed data acquisition.
Analog Devices AD9212 specifications
| Resolution | 10 bits |
|---|---|
| Power per channel (65 MSPS) | 100 mW |
| Analog bandwidth (full power) | 325 MHz |
| Supply voltage | AVDD = 1.8 V, DRVDD = 1.8 V |
Source: Analog Devices AD9212 Datasheet
All Analog Devices AD9212 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD9212 require?
The AD9212 operates from a single 1.8 V supply for both AVDD and DRVDD.
What is the maximum sampling rate of the AD9212?
The device supports up to 65 MSPS sampling rate.
What supply voltage does the AD9212 require?
The AD9212 operates from a single 1.8 V supply for both AVDD and DRVDD.
From: Analog Devices AD9212 Octal 10‑Bit 40/65 MSPS Serial LVDS ADC Handbook
What is the maximum sampling rate of the AD9212?
The device can sample up to 65 MSPS.
From: Analog Devices AD9212 Octal 10‑Bit 40/65 MSPS Serial LVDS ADC Handbook
What supply voltage does the AD9212 require?
The AD9212 operates from a single 1.8 V power supply.
From: Analog Devices AD9212 10-Bit 40/65 MSPS Serial LVDS ADC Datasheet
How many ADC channels are integrated in the AD9212?
Eight ADC channels are integrated into one package.
From: Analog Devices AD9212 10-Bit 40/65 MSPS Serial LVDS ADC Datasheet
