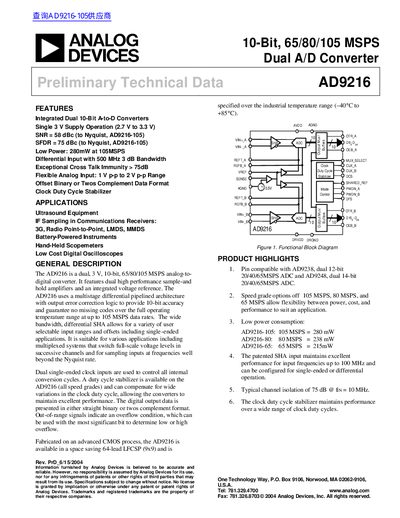

ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter AD9216 handbook
The AD9216 is a dual, 3 V, 10-bit, 65/80/105 MSPS analog-to-digital converter featuring dual high performance sample-and-hold amplifiers and an integrated voltage reference. It utilizes a multistage differential pipelined architecture with output error correction logic to provide 10-bit accuracy and guarantee no missing codes over the full operating temperature range at up to 105 MSPS data rates.
The device is fabricated on an advanced CMOS process and is available in a space-saving 64-lead LFCSP package. It operates over the industrial temperature range (40°C to +85°C) and supports speed grades of 105, 80, and 65 MSPS, allowing flexibility between power consumption, cost, and performance.
Analog Devices AD9216 specifications
| Resolution | 10 Bits |
|---|---|
| Max Conversion Rate | 65/80/105 MSPS |
| Supply Voltage (AVDD) | 2.7 V to 3.3 V |
| Signal-to-Noise Ratio | 58 dBc |
| Spurious Free Dynamic Range | 75 dBc |
| Power Consumption (105 MSPS) | 280 mW |
| 3 dB Bandwidth | 500 MHz |
Source: ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter AD9216 handbook
All Analog Devices AD9216 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter AD9216 handbook 20 p
- Analog Devices AD9216 10‑Bit Dual‑Channel ADC Datasheet 40 p
- ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter Preliminary Technical Data AD9216 handbook 20 p
- ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter Preliminary Technical Data AD9216 handbook3 20 p
- Analog Devices AD9216 Datasheet 40 p
Questions answered in these manuals
What are the available speed grades for the AD9216?
The device is available in speed grade options of 105 MSPS, 80 MSPS, and 65 MSPS.
From: ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter AD9216 handbook
Does the AD9216 include a voltage reference?
Yes, it features an integrated voltage reference.
From: ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter AD9216 handbook
How much power does each channel consume at 105 MSPS?
Each channel consumes about 150 mW at 105 MSPS.
From: Analog Devices AD9216 10‑Bit Dual‑Channel ADC Datasheet
What type of input does the AD9216 support?
It supports differential inputs with a full‑scale range of –0.5 dBFS.
From: Analog Devices AD9216 10‑Bit Dual‑Channel ADC Datasheet
What is the maximum sampling rate of the AD9216?
The AD9216 can operate up to 105 MSPS, depending on the speed grade.
From: ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter Preliminary Technical Data AD9216 handbook
How much power does the AD9216 consume at 105 MSPS?
At 105 MSPS the device consumes about 280 mW.
From: ANALOG DEVICES 10-Bit 65/80/105 MSPS Dual A/D Converter Preliminary Technical Data AD9216 handbook
