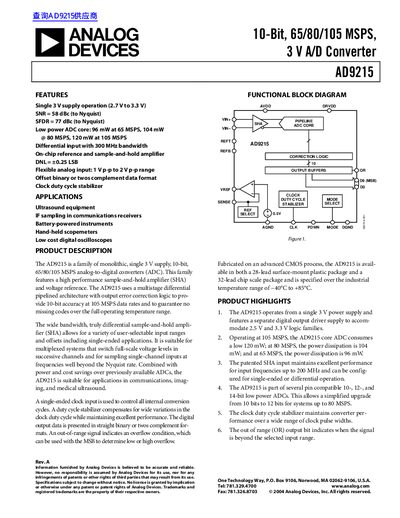

ANALOG DEVICES 10-Bit 65/80/105 MSPS 3 V A/D Converter AD9215 handbook
The document describes the AD9215 as a monolithic, single 3 V supply ADC featuring a high-performance sample-and-hold amplifier and voltage reference. It utilizes a multistage differential pipelined architecture with output error correction logic to ensure no missing codes over its full operating temperature range.
Key features include operation from a single 2.7 V to 3.3 V supply, a wide bandwidth of 300 MHz for differential inputs, and flexible analog input ranges selectable between 1 V p-p and 2 V p-p. The device is available in two packages: a 28-lead surface-mount plastic package and a 32-lead chip scale package.
Analog Devices AD9215 specifications
| Resolution | 10 Bits |
|---|---|
| Maximum Conversion Rate | 65/80/105 MSPS |
| Signal-to-Noise Ratio (SNR) | 58 dBc (to Nyquist) |
| Analog Bandwidth | 300 MHz |
| Supply Voltage Range | 2.7 V to 3.3 V |
Source: ANALOG DEVICES 10-Bit 65/80/105 MSPS 3 V A/D Converter AD9215 handbook
All Analog Devices AD9215 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- ANALOG DEVICES 10-Bit 65/80/105 MSPS 3 V A/D Converter AD9215 handbook 36 p
- Analog Devices AD9215 10‑Bit 65/80/105 MSPS 3 V A/D Converter Datasheet 36 p
- Analog Devices AD9215 10‑Bit 65/80/105 MSPS 3 V A/D Converter Datasheet 36 p
- Analog Devices AD9215 10‑Bit 65/80/105 MSPS 3 V A/D Converter Datasheet 36 p
- Analog Devices AD9215 10‑Bit ADC Datasheet 36 p
Questions answered in these manuals
What is the operating temperature range?
The device is specified over the industrial temperature range of -40°C to +85°C.
From: ANALOG DEVICES 10-Bit 65/80/105 MSPS 3 V A/D Converter AD9215 handbook
What are the available data rates?
The AD9215 family operates at 65, 80, or 105 MSPS.
From: ANALOG DEVICES 10-Bit 65/80/105 MSPS 3 V A/D Converter AD9215 handbook
What supply voltages are required for the AD9215?
The device uses a 3 V analog supply (AVDD) and a 2.5 V digital output driver supply (DRVDD).
From: Analog Devices AD9215 10‑Bit 65/80/105 MSPS 3 V A/D Converter Datasheet
What is the supply voltage range for AVDD?
AVDD can be supplied from 2.7 V to 3.3 V.
From: Analog Devices AD9215 10‑Bit 65/80/105 MSPS 3 V A/D Converter Datasheet
What is the maximum conversion rate of the AD9215?
The device supports up to 105 MSPS conversion rate.
From: Analog Devices AD9215 10‑Bit 65/80/105 MSPS 3 V A/D Converter Datasheet
What supply voltage does the AD9215 require?
It runs from a single 3 V supply with a range of 2.7 V to 3.3 V.
From: Analog Devices AD9215 10‑Bit 65/80/105 MSPS 3 V A/D Converter Datasheet
