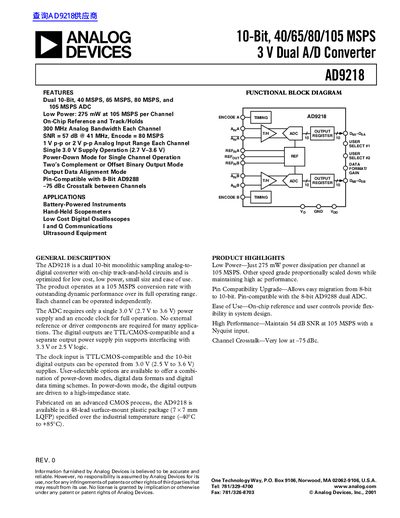

ANALOG DEVICES 10-Bit 40/65/80/105 MSPS 3 V Dual A/D Converter AD9218 handbook
The AD9218 is a dual 10‑bit ADC that operates from a single 3 V supply (2.7 V‑3.6 V) and provides up to 105 MSPS conversion rate per channel. It features on‑chip reference, track‑and‑hold, and flexible output formats (two’s‑complement or offset binary). The device is supplied in a 48‑lead LQFP package (7 × 7 mm) and is rated for industrial temperature range.
Key features include low power dissipation (275 mW per channel at 105 MSPS), 300 MHz analog bandwidth, -75 dBc channel crosstalk, and selectable input ranges of 1 V p‑p or 2 V p‑p. Detailed specifications cover resolution, accuracy, power supply characteristics, pin functions, and timing parameters.
Analog Devices AD9218 specifications
| Power Dissipation at 105 MSPS | 275 mW per channel |
|---|---|
| Analog Bandwidth | 300 MHz |
| Channel Crosstalk | -75 dBc |
| Input Voltage Range | 1 V p‑p or 2 V p‑p per channel |
| Supply Voltage | 2.7 V – 3.6 V (single 3 V supply) |
| Package | 48‑lead LQFP (7 × 7 mm) |
Source: ANALOG DEVICES 10-Bit 40/65/80/105 MSPS 3 V Dual A/D Converter AD9218 handbook
All Analog Devices AD9218 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How much power does the AD9218 consume at 105 MSPS?
It dissipates about 275 mW per channel at 105 MSPS.
From: ANALOG DEVICES 10-Bit 40/65/80/105 MSPS 3 V Dual A/D Converter AD9218 handbook
What analog input voltage range does the AD9218 support?
Each channel accepts either a 1 V p‑p or a 2 V p‑p differential input range.
From: ANALOG DEVICES 10-Bit 40/65/80/105 MSPS 3 V Dual A/D Converter AD9218 handbook
What is the maximum sampling rate of the AD9218?
The AD9218 supports up to 105 MSPS per channel.
What supply voltage does the AD9218 require?
It operates from a single 3.0 V supply, with a range of 2.7 V to 3.6 V.
