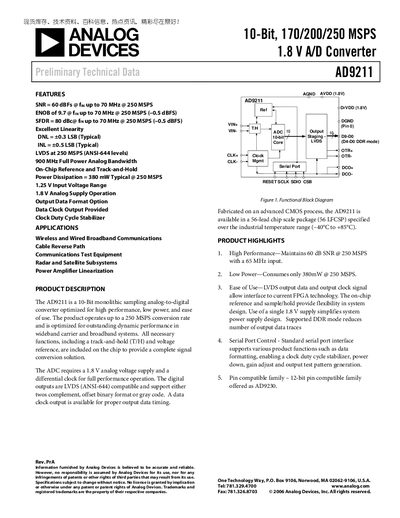

This document introduces the technical characteristics of AD9211 10-bit, 170/200/250 MSPS 1.8 V A/D Converter.
The AD9211 is a 10‑bit monolithic sampling analog‑to‑digital converter optimized for high performance, low power, and ease of use. It operates up to 250 MSPS, offers 60 dB SNR, LVDS digital outputs, and includes on‑chip reference and track‑and‑hold functions.
The device is supplied in a 56‑lead LFCSP package, with a 1.8 V analog and digital supply, and supports multiple output coding formats. Detailed pin descriptions, electrical specifications, and timing diagrams are provided throughout the document.
| Resolution | 10 bits |
|---|---|
| Signal‑to‑Noise Ratio (SNR) | 60 dB @ 250 MSPS |
| Power Dissipation | 380 mW typical @ 250 MSPS |
| Maximum Conversion Rate | 250 MSPS (170/200/250 MSPS variants) |
| Package | 56‑lead LFCSP (LFCSP‑VQ) |
| Operating Temperature Range | -40 °C to +125 °C |
The AD9211 can sample up to 250 MSPS (with 170 MSPS and 200 MSPS variants available).
The device provides LVDS‑compatible digital outputs, selectable as two’s complement, offset binary, or gray code.
Typical power dissipation is 380 mW when operating at 250 MSPS.
