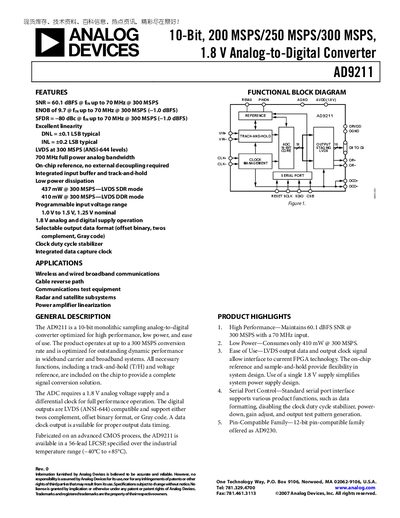

The AD9211 is a 10-bit, 200 MSPS/250 MSPS/300 MSPS analog-to-digital converter with a 1.8V operating voltage. It features high signal-to-noise ratio, high effective number of bits, excellent linearity, and low power dissipation. The product is suitable for applications such as wireless communication.
The AD9211 is a 10‑bit monolithic sampling analog‑to‑digital converter optimized for high performance, low power, and ease of use. It operates up to 300 MSPS, provides LVDS digital outputs, and includes an on‑chip reference and track‑and‑hold circuit.
The device is supplied at 1.8 V, comes in a 56‑lead LFCSP package, and offers programmable input ranges, multiple output coding options, and a serial port for configuration. Detailed specifications, timing diagrams, and absolute maximum ratings are provided throughout the document.
| Resolution | 10 Bits |
|---|---|
| Signal‑to‑Noise Ratio | 60.1 dBFS @ 300 MSPS |
| Power Dissipation (SDR mode) | 437 mW @ 300 MSPS |
| Programmable Input Voltage Range | 1.0 V to 1.5 V (nominal 1.25 V) |
| Supply Voltage | 1.8 V analog and digital |
| Package | 56‑lead LFCSP |
The device dissipates 437 mW when operating at 300 MSPS in single‑data‑rate (SDR) mode.
It operates from a single 1.8 V analog and digital supply.
The ADC can output data in offset binary, two’s complement, or Gray code.
