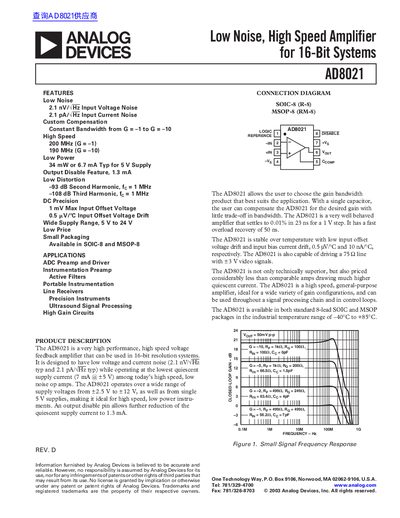

ANALOG DEVICES AD8021 Low Noise High Speed Amplifier for 16-Bit Systems handbook
The AD8021 is a very high performance, high speed voltage feedback amplifier that can be used in 16-bit resolution systems. It features low input voltage and current noise (2.1 nV/VHz typ and 2.1 pA/VHz typ) while operating at the lowest quiescent supply current among comparable high-speed op amps.
Read onlineAnalog Devices AD8021 specifications
| Input Voltage Noise | 2.1 nV/VHz typ |
|---|---|
| Input Current Noise | 2.1 pA/VHz typ |
| Supply Voltage Range | +5 V to +12 V |
| Quiescent Current (Enabled) | 7 mA Typ |
| Settling Time to 0.01% | 23 ns |
Source: ANALOG DEVICES AD8021 Low Noise High Speed Amplifier for 16-Bit Systems handbook
All Analog Devices AD8021 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- ANALOG DEVICES AD8021 Low Noise High Speed Amplifier for 16-Bit Systems handbook 20 p
- ANALOG DEVICES Low Noise High Speed Amplifier for 16-Bit Systems AD8021 handbook 28 p
- Analog Devices AD8021 Datasheet 28 p
- Analog Devices AD8021 Datasheet 28 p
- ANALOG DEVICES Low Noise High Speed Amplifier for 16-Bit Systems AD8021 handbook3 28 p
Questions answered in these manuals
What are the main applications of the AD8021?
The amplifier is suitable for ADC preamps, instrumentation preamps, active filters, portable instrumentation, line receivers, and ultrasound signal processing.
From: ANALOG DEVICES AD8021 Low Noise High Speed Amplifier for 16-Bit Systems handbook
What is the maximum input offset voltage?
The maximum input offset voltage is 1 mV.
From: ANALOG DEVICES AD8021 Low Noise High Speed Amplifier for 16-Bit Systems handbook
How is the disable feature implemented on the AD8021?
Pin 8 (DISABLE) is active‑low; pulling it low disables the amplifier, while a high level enables it.
From: ANALOG DEVICES Low Noise High Speed Amplifier for 16-Bit Systems AD8021 handbook
What is the small‑signal bandwidth at unity gain?
The amplifier provides a 200 MHz small‑signal bandwidth at G = ‑1.
From: ANALOG DEVICES Low Noise High Speed Amplifier for 16-Bit Systems AD8021 handbook
What is the typical quiescent current of the AD8021 when the output is enabled?
The typical quiescent current is about 7 mA for a 5 V supply.
What is the input offset voltage of the AD8021?
The AD8021 has a typical input offset voltage of 1.0 mV.
