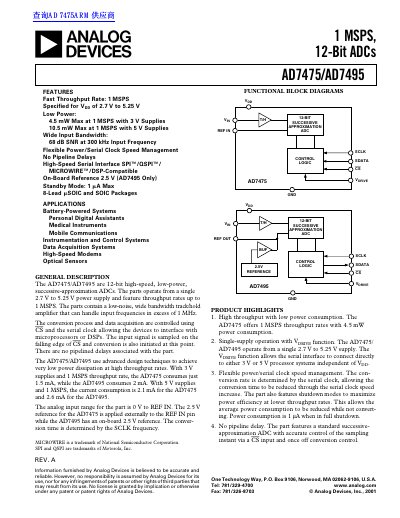

Analog Devices AD7475/AD7495 1 MSPS 12-Bit ADC Datasheet

The AD7475/AD7495 are 12-bit high-speed, low-power, successive-approximation ADCs designed for applications requiring fast throughput and single-supply operation. They operate from a supply voltage of 2.7 V to 5.25 V and feature a track/hold amplifier capable of handling input frequencies in excess of 1 MHz.

The devices utilize an advanced design to achieve very low power dissipation, consuming as little as 4.5 mW at 1 MSPS with 3 V supplies for the AD7475. The conversion process is controlled via a Chip Select (CS) and serial clock input, allowing direct interfacing with microprocessors or DSPs without pipeline delays.
