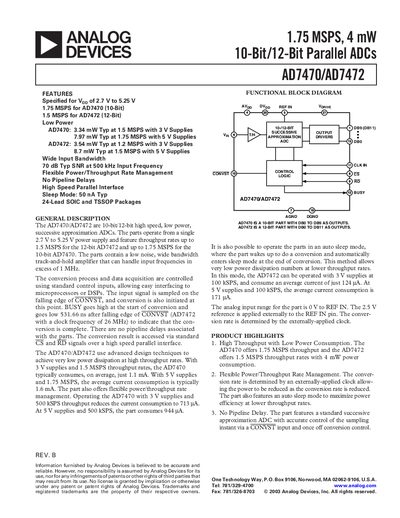

Analog Devices AD7470/AD7472 Datasheet
The AD7470 (10‑bit) and AD7472 (12‑bit) are high‑speed, low‑power successive‑approximation analog‑to‑digital converters that operate from a single 2.7 V to 5.25 V supply. They achieve up to 1.75 MSPS (AD7470) or 1.5 MSPS (AD7472) while consuming only a few milliwatts, and include an auto‑sleep mode for ultra‑low power at reduced throughput.
The document provides detailed pin‑out diagrams, timing specifications, absolute maximum ratings, and an ordering guide for various SOIC and TSSOP packages. It also describes the reference input requirements, power supply decoupling, and the logic functions of control pins such as CS, RD, CONVST, and BUSY.
Analog Devices AD7472 specifications
| Resolution | 10 bits (AD7470), 12 bits (AD7472) |
|---|---|
| Throughput Rate | 1.75 MSPS (AD7470), 1.5 MSPS (AD7472) |
| Power Consumption (typical) | 3.34 mW at 1.5 MSPS, 3 V (AD7470); 8.7 mW at 1.5 MSPS, 5 V (AD7472) |
| Input Voltage Range | 0 V to REF IN (2.5 V) |
| Reference Input Voltage | 2.5 V ±1 % for specified performance |
All Analog Devices AD7472 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate for the AD7470?
The AD7470 can sample at up to 1.75 MSPS.
How much power does the AD7472 use at 5 V and 1.5 MSPS?
Typical power consumption is 8.7 mW under those conditions.
How much current does the device draw in sleep mode?
In sleep mode the device draws as little as 50 nA typical current.
