Start here

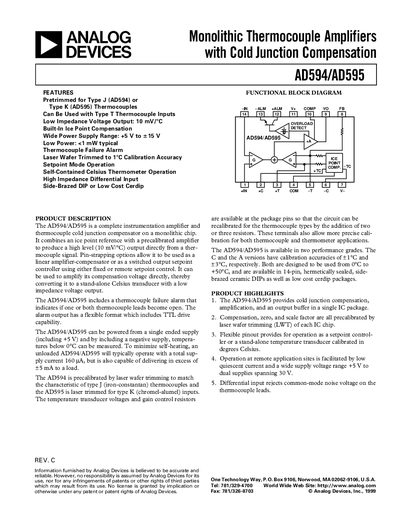

Analog Devices AD594/AD595 Monolithic Thermocouple Amplifiers Specification Sheet
The AD594 and AD595 are monolithic thermocouple amplifiers that integrate cold‑junction compensation, high‑gain amplification, and a low‑impedance voltage output (10 mV/°C). They are laser‑trimmed for Type J (AD594) or Type K (AD595) thermocouples and can also be configured for other thermocouple types through external recalibration.
The devices operate from a wide supply range, support both single‑supply (+5 V) and dual‑supply configurations, and include a thermocouple failure alarm. Key specifications such as power‑supply range, quiescent current, calibration error, and operating temperature range are listed in the specification tables.
Analog Devices AD594 specifications
| Power Consumption | <1 mW typical |
|---|---|
| Operating Temperature Range | –55 °C to +125 °C |
| Calibration Error (typical at +25 °C) | 1.63 °C |
Source: Analog Devices AD594/AD595 Monolithic Thermocouple Amplifiers Specification Sheet
All Analog Devices AD594 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How does the AD594/AD595 provide cold‑junction compensation?
The device includes an internal ice‑point reference and a precalibrated amplifier that together provide cold‑junction compensation.
From: Analog Devices AD594/AD595 Monolithic Thermocouple Amplifiers Specification Sheet
Can the AD594/AD595 be powered from a single supply?
Yes, it can operate from a single +5 V supply.
From: Analog Devices AD594/AD595 Monolithic Thermocouple Amplifiers Specification Sheet
What is the output voltage per degree Celsius?
The device provides a low‑impedance output of 10 mV for each degree Celsius.
From: Analog Devices AD594/AD595 Thermocouple Amplifier Datasheet
Does the AD594/AD595 include a thermocouple failure alarm?
Yes, it includes a thermocouple failure alarm with a flexible TTL‑drive output format.
From: Analog Devices AD594/AD595 Thermocouple Amplifier Datasheet
What is the output scaling of the AD594/AD595?
The device provides a low‑impedance voltage output of 10 mV per degree Celsius.
From: Analog Devices AD594/AD595 Thermocouple Amplifier Handbook
What supply voltages can the AD594/AD595 operate from?
It can run from a single supply of +5 V to +15 V, and with a dual supply it can accept voltages up to +30 V.
From: Analog Devices AD594/AD595 Thermocouple Amplifier Handbook
