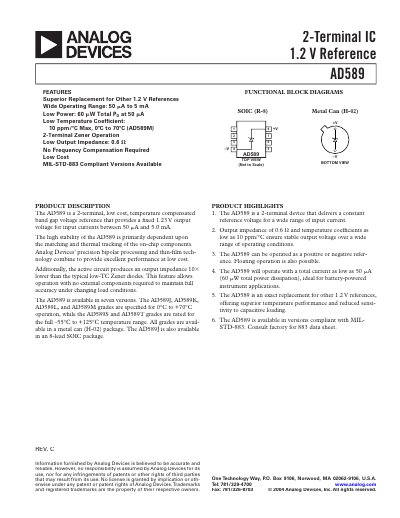

Analog Devices AD589 2-Terminal Voltage Reference Datasheet
The AD589 is a 2‑terminal, temperature‑compensated band‑gap voltage reference that delivers a fixed 1.23 V output over a wide input‑current range (50 µA‑5 mA). It is available in metal‑can and SOIC packages and in several temperature‑grade versions.
The device features low output impedance (0.6 Ω), low RMS noise (≈5 µV), and fast turn‑on settling (≈25 µs). It can be used directly as a reference for ADCs, DACs, or as a building block for higher‑voltage references.
Analog Devices AD589 specifications
| Typical Output Voltage | 1.235 V |
|---|---|
| Dynamic Output Impedance | 0.6 Ω |
| Temperature Coefficient | 10 ppm/°C |
Source: Analog Devices AD589 Datasheet
All Analog Devices AD589 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature coefficient of the AD589?
The device has a temperature coefficient of 10 ppm/°C.
From: Analog Devices AD589 2-Terminal Voltage Reference Datasheet
How much power does the AD589 dissipate at its minimum current?
At 50 µA the total power dissipation is about 60 µW.
From: Analog Devices AD589 2-Terminal Voltage Reference Datasheet
What is the typical output voltage of the AD589?
The typical output voltage is 1.235 V at 25 °C.
What is the temperature coefficient of the AD589?
The AD589 has a temperature coefficient of 10 ppm/°C.
