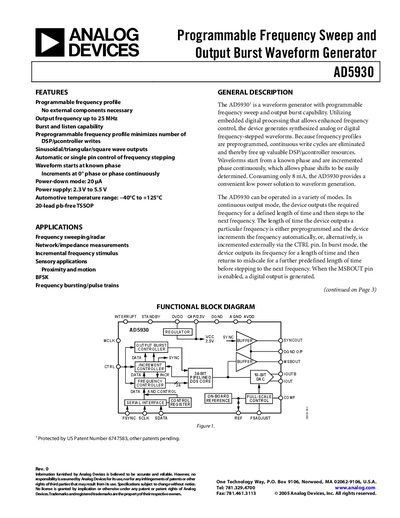

Analog Devices AD5930 Datasheet
The AD5930 from Analog Devices is a waveform generator that provides programmable frequency‑sweep and burst capabilities. It features a 10‑bit DAC, selectable sinusoidal, triangular, and square wave outputs, and can be controlled via a 3‑wire serial interface. The device operates from a 2.3 V to 5.5 V supply and includes a low‑power standby mode.
The datasheet lists detailed specifications such as a 25 MHz maximum output frequency, 50 MSPS update rate, and a power‑down current of 20 pA. It also provides timing characteristics, absolute maximum ratings, and package information (20‑lead pb‑free TSSOP). Applications include frequency‑sweeping radar, impedance measurements, and BFSK signaling.
Analog Devices AD5930 specifications
| Maximum Output Frequency | 25 MHz |
|---|---|
| Power Supply Range | 2.3 V to 5.5 V |
| Power‑down Current | 20 pA |
| DAC Resolution | 10 bits |
| DAC Update Rate | 50 MSPS |
| Signal‑to‑Noise Ratio | 53 dB |
| Total Harmonic Distortion | -60 dBc |
| Wake‑Up Time | 1.7 ms |
| Operating Temperature Range | –40 °C to +125 °C |
| Package | 20‑lead pb‑free TSSOP |
