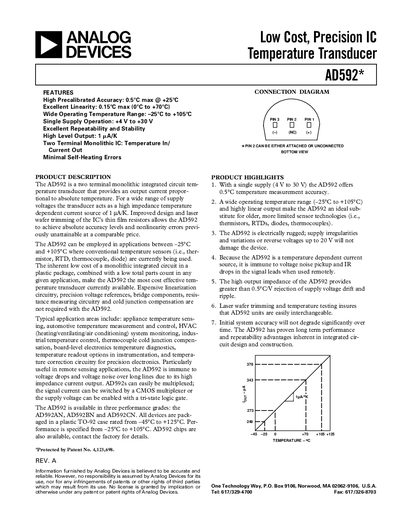

Analog Devices AD592 Temperature Transducer Datasheet
The AD592 temperature transducer from Analog Devices provides a linear current output proportional to absolute temperature (1 µA per kelvin). It operates from a single supply of 4 V to 30 V and is packaged in a plastic TO‑92 case rated for -45 °C to +125 °C.
The device is offered in three performance grades (AD592AN, AD592BN, AD592CN) and includes detailed specifications for accuracy, non‑linearity, power‑supply rejection, and thermal characteristics. Application circuits, mounting guidelines, and ordering information are provided throughout the document.
Analog Devices AD592 specifications
| Calibration accuracy | 0.5 °C max @ +25 °C |
|---|---|
| Operating temperature range | -25 °C to +105 °C |
| Supply voltage range | 4 V to 30 V |
| Package | Plastic TO‑92, rated -45 °C to +125 °C |
Source: Analog Devices AD592 Temperature Transducer Datasheet
All Analog Devices AD592 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range can the AD592 operate in?
It operates from –25 °C to +105 °C, with a package rating of –45 °C to +125 °C.
What supply voltage range does the AD592 accept?
The device works with a single supply between 4 V and 30 V.
