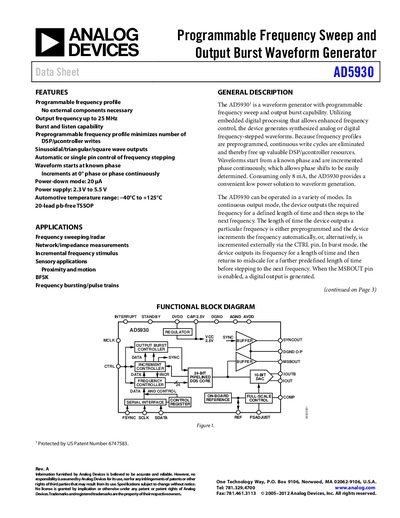

AD5930 is a programmable frequency sweep and output burst waveform generator with programmable frequency profile.
The AD5930 is a programmable frequency‑sweep and output‑burst waveform generator that supports up to 25 MHz output frequency and operates from a 2.3 V to 5.5 V supply. It offers a 10‑bit DAC, 50 MSPS update rate, and low power consumption with a 1.7 ms wake‑up time from standby.
The handbook includes functional block diagrams, timing characteristics, absolute maximum ratings, ESD precautions, and an ordering guide for the 20‑lead Pb‑free TSSOP package. It also lists automotive temperature range (‑40 °C to +125 °C) and detailed electrical specifications such as signal‑to‑noise ratio and harmonic distortion.
| Maximum Output Frequency | 25 MHz |
|---|---|
| Power Supply Voltage | 2.3 V to 5.5 V |
| DAC Resolution | 10 bits |
| DAC Update Rate | 50 MSPS |
| Signal‑to‑Noise Ratio | 53‑60 dB |
| Wake‑Up Time | 1.7 ms |
| Operating Temperature Range | ‑40 °C to +125 °C |
The AD5930 operates from a 2.3 V to 5.5 V power supply.
The device can generate output frequencies up to 25 MHz.
The DAC resolution is 10 bits.
The wake‑up time from standby is 1.7 ms.
