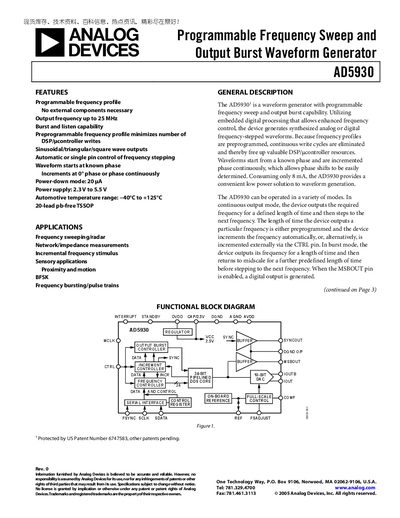

The document describes the features and characteristics of the Programmable Frequency Sweep and Output Burst Waveform Generator AD5930 from Dinghao, including programmable frequency profile, no external components required, output frequency up to 25 MHz, etc.
The AD5930 is a waveform generator that provides programmable frequency‑sweep and output‑burst capabilities. It operates from a 2.3 V to 5.5 V supply, consumes about 8 mA, and supports automotive temperature ranges from –40 °C to +125 °C.
The document includes functional block diagrams, timing characteristics, absolute maximum ratings, and an ordering guide. Detailed specifications cover DAC resolution, update rate, output levels, and ESD precautions.
| Output frequency | up to 25 MHz |
|---|---|
| Power supply | 2.3 V to 5.5 V |
| Operating temperature range | –40 °C to +125 °C |
| DAC resolution | 10 bits |
| DAC update rate | 50 MSPS |
| Current consumption | 8 mA |
The device operates from 2.3 V to 5.5 V.
The signal DAC provides 10‑bit resolution.
It can generate frequencies up to 25 MHz.
It supports –40 °C to +125 °C.
