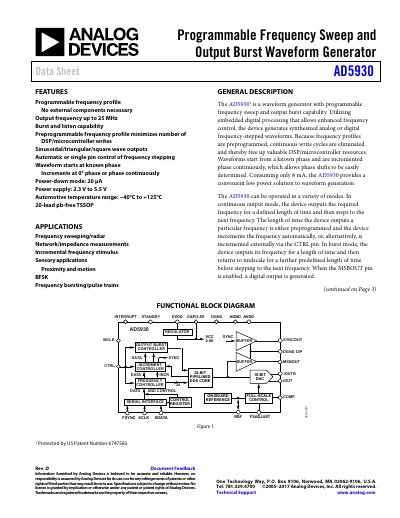

The document is the data sheet for the AD5930 Programmable Frequency Sweep and Output Burst Waveform Generator, describing the features and characteristics of the product.
The AD5930 is a waveform generator designed for applications requiring programmable frequency sweeps and output bursts. Utilizing embedded digital processing, it generates synthesized analog or digital frequency-stepped waveforms without the need for continuous DSP writes. The device supports sinusoidal, triangular, and square wave outputs and can operate in various modes including continuous output, automatic sweeping, and burst mode.
| Resolution | 10 Bits |
|---|---|
| Update Rate | 50 MSPS |
| VOUT Peak-to-Peak | 0.56 V |
| Output Compliance | 0.8 V |
| Signal-to-Noise Ratio | 60 dB |
| Total Harmonic Distortion | -53 dBc |
| Power Supply Range | 2.3 V to 5.5 V |
| Operating Temperature Range (Automotive) | -40°C to +125°C |
The device supports sinusoidal, triangular, and square wave outputs.
No, it operates with no external components necessary.
The device can generate an output frequency up to 25 MHz.
