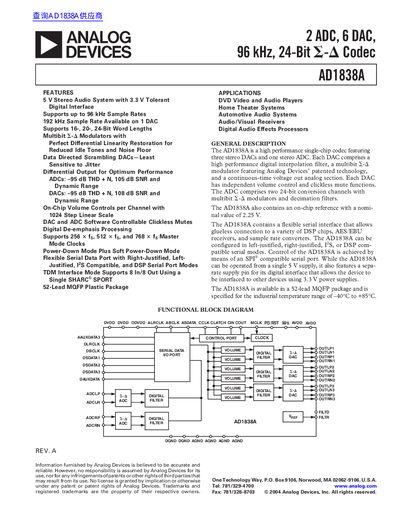

ANALOG DEVICES 2 ADC 6 DAC 96 kHz 24-Bit AD1838A handbook
The AD1838A is a single-chip audio codec designed for applications such as DVD players, home theater systems, and automotive audio. It integrates three stereo digital-to-analog converters (DACs) and one stereo analog-to-digital converter (ADC), each featuring multibit sigma-delta modulators with Analog Devices' patented technology to reduce idle tones.
The device supports sample rates up to 96 kHz for all channels, with an additional 192 kHz rate available on the DAC. It includes flexible serial interfaces compatible with various DSP chips and AES/EBU receivers, operating from a single 5 V supply or separate digital supplies.
Analog Devices AD1838A specifications
| DAC Resolution | 24 Bits |
|---|---|
| Dynamic Range (ADC) | 105 dB |
| Total Harmonic Distortion + Noise (THD+N) | -95 dB |
| Supply Voltage | 5 V |
| Operating Temperature Range | -40°C to +85°C |
Source: ANALOG DEVICES 2 ADC 6 DAC 96 kHz 24-Bit AD1838A handbook
All Analog Devices AD1838A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sample rate supported by the AD1838A?
The device supports up to 96 kHz sample rates, with a 192 kHz rate available on one DAC.
From: ANALOG DEVICES 2 ADC 6 DAC 96 kHz 24-Bit AD1838A handbook
What is the ADC dynamic range?
The ADC offers a dynamic range of 105 dB with an A-Weighted Filter.
From: ANALOG DEVICES 2 ADC 6 DAC 96 kHz 24-Bit AD1838A handbook
What supply voltage does the AD1838A require?
The AD1838A operates from a 5 V analog supply (AVDD/DVDD) with a separate 3.3 V‑tolerant digital supply.
What is the maximum audio sample rate supported by the AD1838A?
The codec supports audio sample rates up to 96 kHz.
