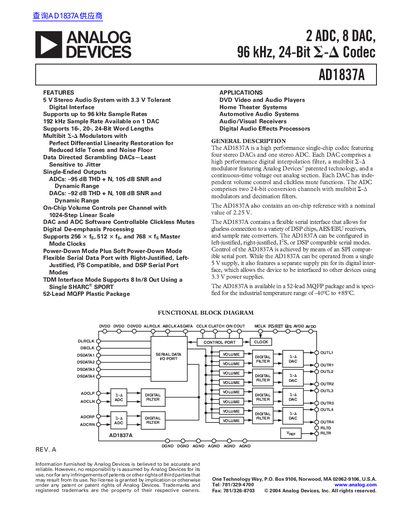

Analog Devices AD1837A 2 ADC 8 DAC Codec Datasheet
The AD1837A is a high-performance single-chip codec designed for use in DVD players, home theater systems, and automotive audio applications. It features four stereo digital-to-analog converters (DACs) and one stereo analog-to-digital converter (ADC). Each DAC includes independent volume control and clickless mute functions, while the ADC comprises two 24-bit conversion channels.
Read onlineAnalog Devices AD1837A specifications
| DAC Resolution | 24 Bits |
|---|---|
| Dynamic Range (ADC) | 105 dB |
| Total Harmonic Distortion + Noise (ADC) | -95 dB |
| Dynamic Range (DAC) | 108 dB |
| Total Harmonic Distortion + Noise (DAC) | -92 dB |
| Operating Temperature Range | -40°C to +85°C |
| Package Description | 52-Lead MQFP |
All Analog Devices AD1837A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sample rate supported by the AD1837A?
The device supports up to 96 kHz sample rates, with a 192 kHz sample rate available on one DAC.
What is the full-scale output voltage at each pin?
The full-scale output voltage ranges from 1.0 Vrms (2.8 V p-p) in single-ended mode.
What is the supply voltage range for the AD1837A?
The device operates from 4.5 V to 5.5 V for both AVDD and DVDD supplies.
How many DAC channels does the AD1837A provide?
It includes four stereo DACs, giving a total of eight DAC channels.
