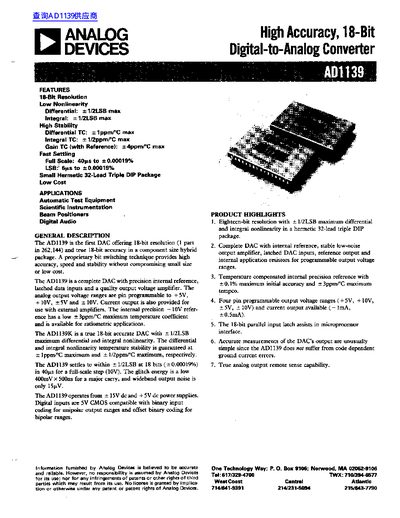

Analog Devices AD1139 Datasheet
Datasheet 6 pages · 456 KB · EN
The document describes the AD1139, a complete Digital-to-Analog Converter (DAC) offering 18-bit resolution and true 18-bit accuracy in a hermetic 32-lead DIP package. It features a precision internal reference, latched data inputs, and a quality output voltage amplifier with pin-programmable analog output ranges.
Read onlineAnalog Devices AD1139 specifications
| Resolution | 18 Bits |
|---|---|
| Settling Time (Full Scale) | 40us to +0.00019% |
| Operating Temperature Range | 0 to +70°C |
Source: Analog Devices AD1139 Datasheet
All Analog Devices AD1139 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum differential nonlinearity of the AD1139?
The maximum differential nonlinearity is +1/2LSB.
What are the available output voltage ranges for the AD1139?
The analog output voltage ranges are pin programmable to +5V, +10V, -5V, and -10V.
What is the resolution of the AD1139 DAC?
The AD1139 provides 18‑bit resolution.
What output voltage ranges can be programmed on the AD1139?
The device is pin‑programmable for ±5 V or ±10 V voltage ranges, with both voltage and current output options.
