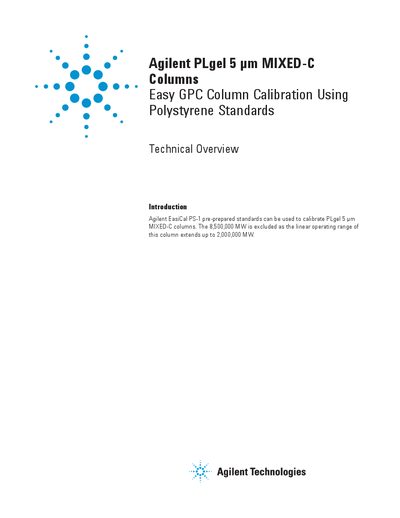

Agilent PLgel 5 um MIXED-C Column Calibration Technical Overview
This document provides a technical overview for calibrating Agilent PLgel 5 um MIXED-C columns using Agilent EasiCal PS-1 pre-prepared standards. The document notes that the 8,500,000 MW standard is excluded because the column's linear operating range extends only up to 2,000,000 MW.
The PLgel 5 um MIXED-C columns are designed for rapid polymer analysis, offering high resolution and accuracy in molecular weight distribution analyses. The document lists specific chromatographic conditions for calibration, including the use of THF as the eluent, a flow rate of 1.0 mL/min, and UV detection at 254 nm.
Agilent PLgel 5 um MIXED-C specifications
| Linear operating range | up to 2,000,000 MW |
|---|---|
| Column dimensions | 300 x 7.5 mm |
| Part number | PL1110-6500 |
| Eluent | THF |
| Flow Rate | 1.0 mL/min |
| Detection wavelength | 254 nm |
Source: Agilent PLgel 5 um MIXED-C Column Calibration Technical Overview
All Agilent PLgel 5 um MIXED-C documents by type
Questions answered in these manuals
Which standards are used for calibration?
Agilent EasiCal PS-1 pre-prepared standards are used to calibrate the columns.
From: Agilent PLgel 5 um MIXED-C Column Calibration Technical Overview
Is the 8,500,000 MW standard included in the calibration?
No, the 8,500,000 MW is excluded as it is outside the linear operating range.
From: Agilent PLgel 5 um MIXED-C Column Calibration Technical Overview
What are the dimensions of the PLgel 5 um MIXED-C column shown in Figure 1?
The column measures 380 x 7.5 mm.
From: Agilent PLgel 5 um MIXED-C Columns GPC Calibrations and Hydrodynamic Volume Technical Overview
What part number corresponds to the PLgel 5 um MIXED-C column in Figure 1?
The part number is PL1110-6500.
From: Agilent PLgel 5 um MIXED-C Columns GPC Calibrations and Hydrodynamic Volume Technical Overview
What are PLgel 5 um MIXED-C columns designed for?
They are designed for rapid polymer analysis and are ideal for comparing batches of polycarbonate.
What provides the versatility essential for the modern R&D laboratory?
Rapid solvent change capability, excellent temperature stability, and high resolution provide this versatility.
