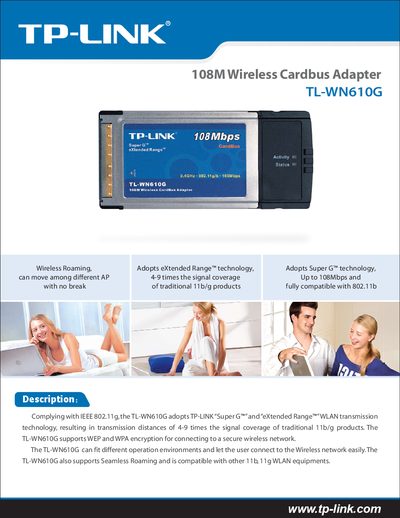

The TL-WN610G is a 108M Wireless Cardbus Adapter that conforms to the IEEE 802.11g standard and adopts TP-LINK “Super G™” and “eXtended Range™” WLAN transmission technology, resulting in transmission distances of 4-9 times the signal coverage of traditional 11b/g products. It supports WEP and WPA encryption for connecting to a secure wireless network.
The TL-WN610G is a 108Mbps Cardbus wireless adapter that supports IEEE 802.11b/g standards and TP‑Link’s Super G™ and eXtended Range™ technologies, delivering 4‑9 times greater coverage than traditional 11b/g devices. It includes an internal omni‑directional antenna and offers WEP, WPA, and WPA2 encryption for secure connections.
This guide covers installation steps, driver setup for Windows 2000/XP/Vista, detailed technical specifications such as data rates, transmit power, receiver sensitivity, and environmental limits, as well as troubleshooting and quick‑setup instructions.
| Wireless Standard | IEEE 802.11g, IEEE 802.11b |
|---|---|
| Interface | 32-bit Cardbus |
| Wireless Signal Rates | 11g: 108/54/48/36/24/18/12/9/6 Mbps; 11b: 11/5.5/3/2/1 Mbps |
| Frequency Range | 2.4‑2.4835 GHz |
| Transmit Power | 17 dBm (MAX) |
| Modulation Type | 1M DBPSK, 2M DOPSK, 5.5M/11M CCK, 6M‑54M OFDM |
| Receiver Sensitivity | 108M: -68 dBm@10% PER; 54M: -68 dBm@10% PER; 11M: -85 dBm@8% PER; 6M: -88 dBm@10% PER; 1M: -90 dBm@8% PER |
| Antenna Type | Internal omni‑directional |
| Security | 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK (TKIP/AES) |
| Range | Indoors up to 200 m, Outdoors up to 830 m |
| Supported Operating Systems | Windows 2000, XP, Vista |
| Operating Temperature | 0 °C – 40 °C (32 °F – 104 °F) |
| Storage Temperature | -40 °C – 70 °C (-40 °F – 158 °F) |
| Dimensions | 4.5 × 2.1 × 0.2 in (115 × 54 × 5 mm) |
The adapter works with Windows 2000, Windows XP, and Windows Vista.
It can achieve up to 108 Mbps on 802.11g networks.
It supports 64/128/152‑bit WEP, WPA/WPA2, and WPA‑PSK/WPA2‑PSK (TKIP/AES).
The adapter provides indoor coverage up to 200 m and outdoor coverage up to 830 m.
