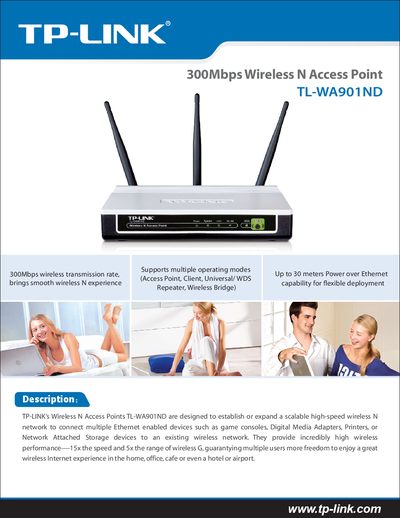

TP-LINK TL-WA901ND 300Mbps Wireless N Access Point is a high performance wireless access point, supporting 300Mbps wireless transmission rate, which enables you to enjoy smooth wireless Internet experience at home, office, cafe or even at hotel or airport.
The TL-WA901ND is a 300 Mbps Wireless N access point designed to create or extend a high‑speed Wi‑Fi network for Ethernet‑enabled devices such as game consoles, printers, and NAS units. It supports multiple operating modes, including Access Point, Client, Universal/WDS Repeater, Point‑to‑Point and Point‑to‑Multi‑point, and offers up to 30 m PoE capability.
This manual covers quick installation steps, configuration of SSIDs, VLANs, security settings (WPA/WPA2), and detailed technical specifications such as wireless rates, frequency range, antenna options, power supply, and environmental limits.
| Wireless transmission rate (802.11n) | Up to 300 Mbps |
|---|---|
| Wireless transmission rate (802.11g) | Up to 54 Mbps |
| Wireless transmission rate (802.11b) | Up to 11 Mbps |
| Frequency range | 2.4‑2.4835 GHz |
| Wireless transmit power (max) | 20 dBm |
| Antenna | Detachable omni‑directional, 3 dBi |
| Power supply | 12 VDC / 1 A Switching PSU |
| Operating temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Storage temperature | -40 °C ~ 70 °C (-40 °F ~ 158 °F) |
| Dimensions | 6.9 × 4.7 × 1.1 in (174 × 120 × 28.8 mm) |
| Ethernet port | One RJ45 supporting Passive PoE |
| Supported SSIDs | Up to 4 SSIDs |
| PoE capability | Supports up to 30 m of Power over Ethernet |
It supports up to four SSIDs.
The device can achieve up to 300 Mbps with 802.11n.
Yes, it supports up to 30 meters of PoE.
The unit operates from 0 °C to 40 °C.
