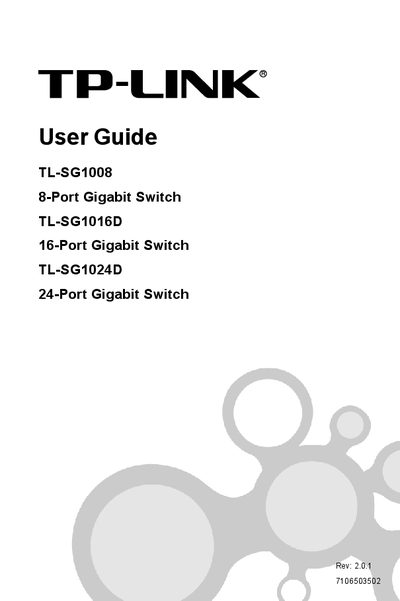

TL-SG1008 8-Port Gigabit Switch, TL-SG1016D 16-Port Gigabit Switch and TL-SG1024D 24-Port Gigabit Switch are Gigabit Network Switches that provide up to 8, 16 or 24 Gigabit Ethernet ports respectively.
The TL‑SG1008/TL‑SG1016D/TL‑SG1024D switches provide non‑blocking Gigabit Ethernet connectivity with 8, 16 or 24 auto‑sensing RJ45 ports, IEEE‑compliant standards, and plug‑and‑play operation. Features include auto‑MDI/MDIX, LED status indicators, and both desktop and rack‑mountable steel cases.
The guide explains how to install the switch on a flat surface or 19‑inch rack, connect power and grounding, and perform basic troubleshooting such as checking the Power LED, Link/Act LED, and cable length limits.
| Ports | 8/16/24 10/100/1000Mbps Auto‑Sense RJ45 ports |
|---|---|
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Power LED | Solid red when powered |
| Link/Act LED | Solid green when linked, flashes green during activity |
| Mounting | Desktop and rack‑mountable steel case |
| Power Supply | Internal |
Make sure the AC power cord is properly connected and the power source is turned on.
It lights solid green when a device is connected and flashes green while data is being transmitted.
The cable must be less than 100 meters (328 feet) long.
