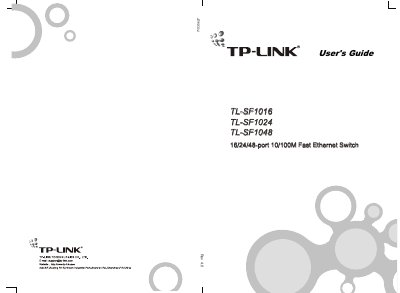

This document is the user's guide for TL-SF1016, TL-SF1024, TL-SF1048 switches. It introduces the basic functions and usage methods of the switch.
This guide introduces the TL‑SF1016, TL‑SF1024 and TL‑SF1048 16/24/48‑port 10/100Mbps Fast Ethernet Switches, describing their features, auto‑MDI/MDIX capability and plug‑and‑play operation. It also lists the package contents and explains the differences between the three models.
The manual covers installation steps for desk and rack mounting, explains the front and rear panel layout and LED indicators, provides full technical specifications, and includes a troubleshooting section with common LED‑related issues and contact information for support. This manual is written in Chinese.
| TL‑SF1016 dimensions | 11.57 × 7.1 × 1.73 in |
|---|---|
| TL‑SF1024 dimensions | 17.3 × 7.1 × 1.73 in |
| TL‑SF1048 dimensions | 17.3 × 10.2 × 1.73 in |
| Power supply | 100‑240 V~ 50‑60 Hz (internal universal) |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Number of ports | 16/24/48 10/100Mbps Auto‑Negotiation RJ‑45 ports |
Make sure the AC power cord is properly connected and that the power source is turned on.
They operate between 0 °C and 40 °C (32 °F to 104 °F).
