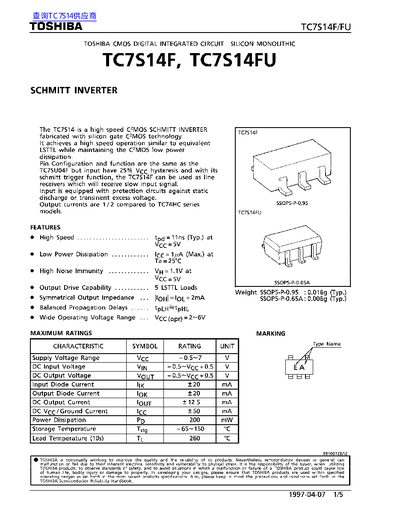

Toshiba TC7S14F/TC7S14FU Schmitt Inverter Datasheet
This document is a datasheet for the Toshiba TC7S14F and TC7S14FU, which are high-speed C2MOS Schmitt Inverters fabricated with silicon gate C2MOS technology. These devices achieve high-speed operation similar to LSTTL while maintaining low power dissipation and are designed to receive slow input signals due to their Schmitt trigger function.
Read onlineToshiba TC7S14FU specifications
| Supply Voltage Range | 2~6 V |
|---|---|
| Operating Temperature | -40~85 °C |
| Propagation Delay (Typ.) | 11ns |
| Power Dissipation (Max.) | 1mW |
| Hysteresis Voltage | 25% Vcc |
| Output Current (Max.) | 125 mA |
| Package Weight (SSOP5-P-0.95) | 0.016g |
All Toshiba TC7S14FU documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the main function of the TC7S14F?
It is a high speed C2MOS Schmitt Inverter that can be used as line receivers for slow input signals.
What is the typical propagation delay?
The typical propagation delay is 11ns at Vcc = 5V.
What is the typical propagation delay of the TC7S14F/FU?
The typical propagation delay is 11 ns when powered at 5 V.
What is the operating voltage range for the TC7S14F/FU?
It operates over a voltage range of 2 V to 6 V.
What is the supply voltage range for the TC7S14F/FU?
The device operates with a supply voltage between 2 V and 6 V.
What temperature range can the TC7S14F/FU operate in?
It is rated for operation from –40 °C to +85 °C.
