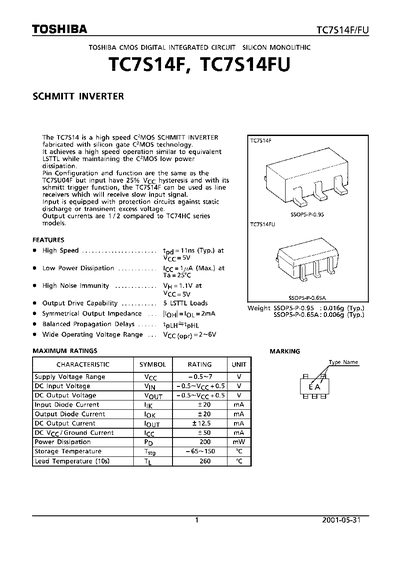

The TC7S14F/FU is a high‑speed CMOS Schmitt inverter fabricated with silicon‑gate C‑MOS technology. It offers low power dissipation, high noise immunity, and can be used as a line receiver with built‑in protection against static discharge.
The datasheet provides detailed electrical parameters, recommended operating conditions, package dimensions, and usage restrictions for designers of general‑purpose electronic equipment.
| Supply Voltage Range | 2 V ~ 6 V |
|---|---|
| Input Voltage Range | 0 V ~ VCC |
| Output Voltage Range | 0 V ~ VCC |
| Operating Temperature | -40 °C ~ 85 °C |
| Power Dissipation | 200 mW |
| Storage Temperature | -65 °C ~ 150 °C |
| Lead Temperature (10 s) | 260 °C |
| Output Drive Capability | 5 LSTTL loads |
| Typical Propagation Delay (tpLH / tpHL) | ≈11 ns (typ.) |
The device operates with a supply voltage between 2 V and 6 V.
It is rated for operation from –40 °C to +85 °C.
Maximum power dissipation is 200 mW.
