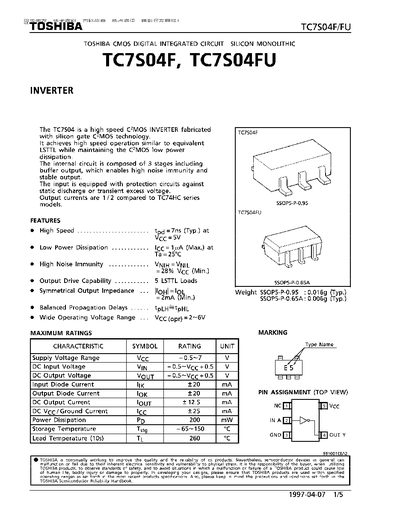

Toshiba TC7S04F/FU CMOS Inverter Datasheet
Datasheet 5 pages · 218 KB · EN
The TC7S04F/FU is a high‑speed CMOS inverter fabricated with silicon‑gate C2MOS technology. It offers low power dissipation, high noise immunity, and a three‑stage internal circuit with a buffered output for stable operation.
The document lists recommended operating conditions, maximum ratings, DC and AC electrical characteristics, pin assignments, and outline drawings for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages.
Toshiba TC7S04F specifications
| Typical Propagation Delay (tpLH) | 7 ns |
|---|---|
| Power Dissipation | 200 mW |
| Operating Temperature Range | -40 ~ 85 °C |
All Toshiba TC7S04F documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the TC7S04F/FU?
The typical propagation delay (tpLH) is 7 ns at a supply voltage of 5 V.
What are the operating temperature limits for the TC7S04F/FU?
The recommended operating temperature is from –40 °C to +85 °C.
What is the supply voltage range for the TC7S04F/FU?
The device operates from 2 V to 6 V supply voltage.
What is the typical propagation delay (tpLH) at Vcc = 5 V?
The typical tpLH is about 7 ns.
