The TC7S14F/FU is a high‑speed CMOS Schmitt‑trigger inverter designed for low‑power, high‑noise‑immunity applications. It offers typical propagation delays of about 11 ns, a wide operating voltage range of 2 V to 6 V, and can drive up to five LSTTL loads.

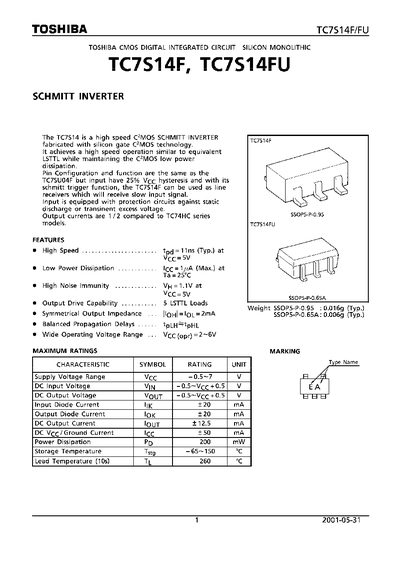

The datasheet provides detailed pin assignments, DC and AC electrical characteristics, package dimensions for both SSOP5‑P‑0.95 and SSOP5‑P‑0.65A variants, and important usage restrictions for safety‑critical or high‑reliability systems.
| Supply Voltage Range | 2 V ~ 6 V |
|---|---|
| Input Voltage Range | 0 V ~ Vcc |
| Output Voltage Range | 0 V ~ Vcc |
| Operating Temperature | -40 °C ~ 85 °C |
| Power Dissipation | 200 mW |
| Storage Temperature | -65 °C ~ 150 °C |
| Lead Temperature (10 s) | 260 °C |
| Input Diode Current | +20 mA |
| Output Diode Current | +20 mA |
| Output Drive Capability | 5 LSTTL loads |
It operates from 2 V to 6 V supply voltage.
The device can be used from –40 °C up to 85 °C.
Yes, the IC is not intended for use in applications where failure could cause loss of life or serious injury, such as atomic energy, aerospace, medical or safety devices.
