Start here

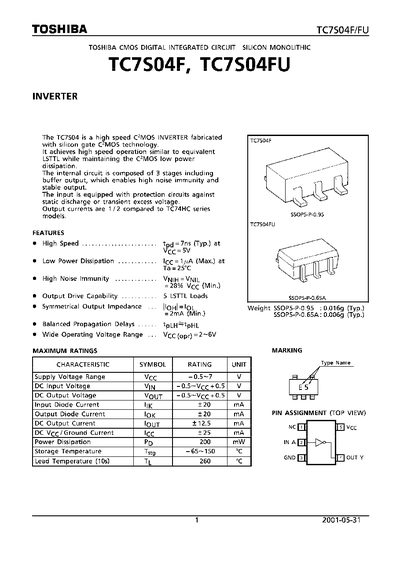

TOSHIBA TC7S04FU Manual
The TC7SO4F/FU is a high‑speed CMOS inverter fabricated with silicon‑gate CMOS technology, offering low power dissipation, high noise immunity, and symmetrical output impedance. It features a three‑stage internal circuit with a buffer output, static‑discharge protection, and output drive capability of up to 1 A.
The document lists recommended operating conditions (2 V–6 V supply, –40 °C to 85 °C temperature range), detailed DC and AC electrical characteristics, package dimensions for SSOP‑5 variants, and restrictions on product use for safety‑critical applications.
Toshiba TC7S04FU specifications
| Supply Voltage Range | 2 V – 6 V |
|---|---|
| Typical Propagation Delay (tpdLH) | 7 ns |
| Maximum Output Current | 1 A |
| Package Weight (SSOP5‑P‑0.95) | 0.016 g (typ.) |
| Operating Temperature Range | -40 °C – 85 °C |
Source: TOSHIBA TC7S04FU Manual
All Toshiba TC7S04FU documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the TC7SO4F/FU?
The typical propagation delay (tpdLH) is about 7 ns at a 5 V supply.
From: TOSHIBA TC7S04FU Manual
What supply voltage range is recommended for the TC7SO4F/FU?
The device is specified for a supply voltage between 2 V and 6 V.
From: TOSHIBA TC7S04FU Manual
What is the typical propagation delay of the TC7S04F/FU?
The typical propagation delay is 7 ns when powered at 5 V.
How much power can the IC dissipate safely?
The maximum allowed power dissipation is 200 mW.
